Pallet Rack Upright Frames



Additional Photos

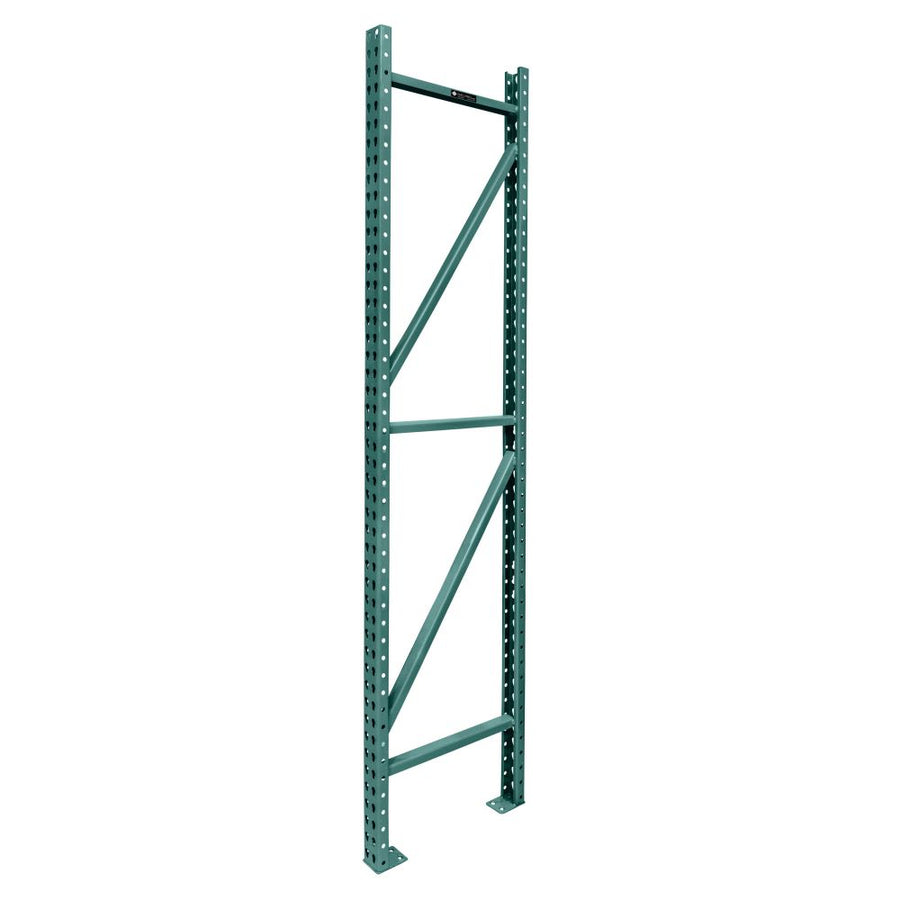

Teardrop Style Upright Frames for Pallet Racking

Teardrop racks have become one of the most popular types of racking used in the country today. Its innovative design allows for fast and simple assembly without the need for clips or other fasteners.

For additional details such as weight capacities, visit our Pallet Rack Info Page

Read more

Starting at $59.47

Product Code: PRUF

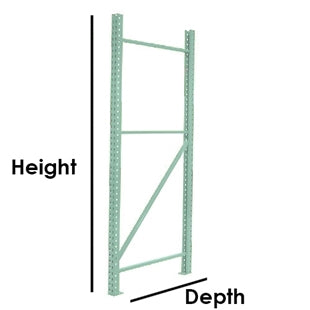

Dimensions*:
24"d x 96"h - 14,300 lbs cap. -$59.47
24"d x 120"h - 14,300 lbs cap. - $72.30
24"d x 144"h - 14,300 lbs cap.- $85.10
36"d x 96"h - 18,800 lbs cap. - $61.44
36"d x 120"h - 18,800 lbs cap.- $73.45
36"d x 144"h - 18,800 lbs cap.- $90.55
*36"d x 144"h - 24,400 lbs- $109.80
*36"d x 192"h - 24,400 lbs cap.- $143.90
42"d x 96"h - 18,800 lbs cap.- $63.45
42"d x 120"h - 18,800 lbs cap- $74.10
42"d x 144"h - 18,800 lbs cap.- $92.00
*42"d x 144"h - 24,400 lbs cap.- $109.75
*42"d x 192"h - 24,400 lbs cap.- $145.20
48"d x 96"h - 18,800 lbs cap.- $65.40
48"d x 120"h - 18,800 lbs cap.- $76.70
48"d x 144"h - 18,800 lbs cap.- $95.60
*48"d x 144"h - 24,400 lbs cap.- $113.40
*48"d x 192"h - 24,400 lbs cap.- $149.35

Qty:
Description Technical Specs


* Denotes 3" wide x 3" deep columns

Most all sizes are in stock in our warehouse and ready to ship, allowing you to get your next storage project done ahead of time. Teardrop uprights are part of the larger pallet racking system, combining with step beams and wire decking to organize your warehouse or other storage facility.

Features
  • Upright frames have teardrop holes with spacing on 2" centers for easily adjustable beams
  • Ties into most existing systems, or serves as the perfect starting section that grows as you grow
  • Automatic safety catches lock into teardrop holes on upright
  • Fully welded frames include pre-punched floor plate for easy anchoring
Product Details
  • Capacities range from 14,300 - 24,400 lbs (at 36" shelf spacing); see Technical Specs for details
  • Columns are 3" x 1-5/8" (except for the frames marked *)
  • Columns and bracing are made of 14 gauge steel
  • All frames use 55ksi hi-strength steel with a 1.92 to 1 safety factor
  • Components are manufactured to RMI specifications
  • Manufacturer: Unirack
  • Product weight: 42-120lbs
