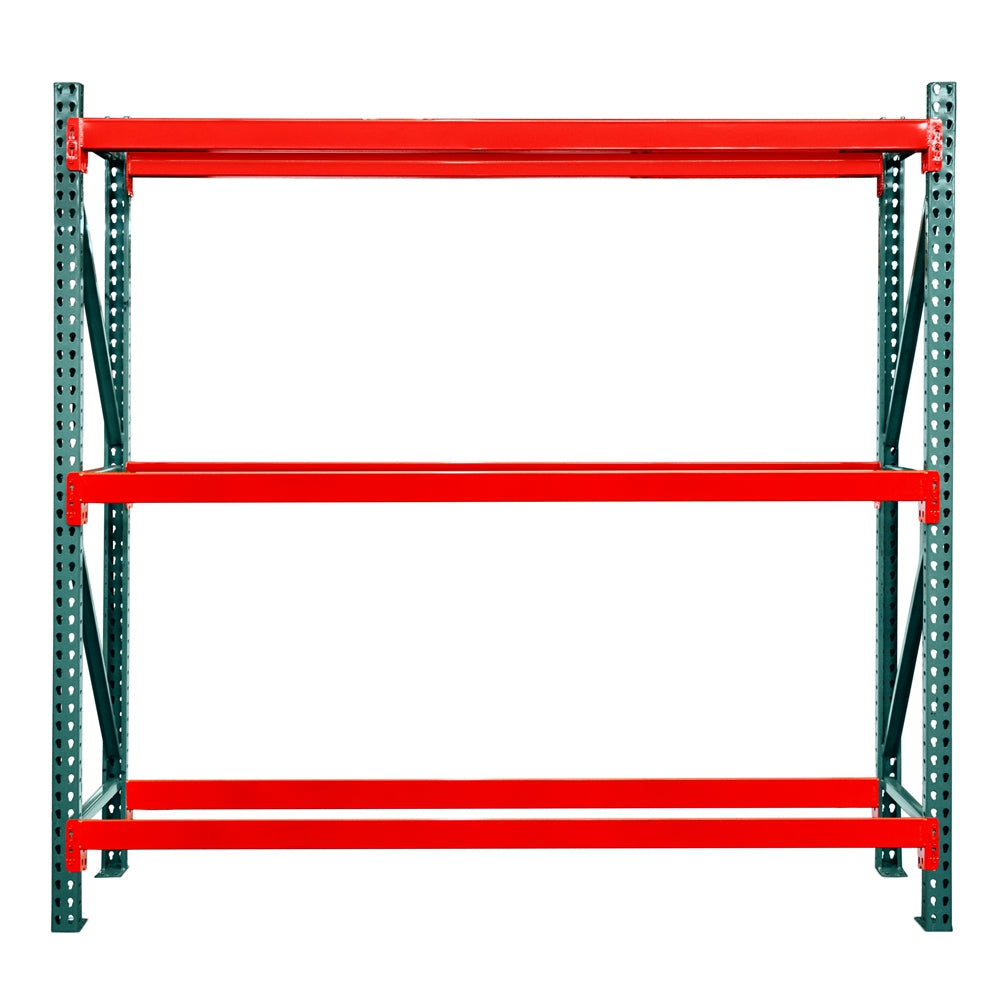

Unirak 3-Tier Teardrop Pallet Rack Starter Units - Standard Duty - 42"d x 144"h
3-Tier Pallet Rack Starter Units - SD - 42"d x 144"h




Our pre-configured Unirak units are economical, easy to construct, and adjustable. Teardrop Pallet Rack Starter Units are ideal for general warehouse environments and distribution centers that have ever-changing storage needs. In just one simple purchase, you can have efficient racking to organize your facility.

*Please note, unit does not include wire decking.

  • Made in Michigan
  • Meets requirements of the RMI
  • 55 KSI high-strength steel construction
  • Durable high-gloss powder coat finish resists abrasion
  • Uprights are punched on 2" centers for easy beam adjustment
  • Beams have 3 rivet connection and safety clips to assure secure locking and rack integrity
  • 1-5/8" step within beam accommodates decking

For weight capacities, please see chart below.

Availability: Stocked in our warehouse. Ships next business day.

Starting at: $585.26

Item# Item Name Item Price Qty Add
USSD4296144350 42"d x 96"w x 144"h - SD 3-Tier Teardrop Pallet Rack Starter Unit - 3-1/2"h Beams (USSD4296144350)
$585.26
USSD4296144418 42"d x 96"w x 144"h - SD 3-Tier Teardrop Pallet Rack Starter Unit - 4-1/8"h Beams (USSD4296144418)
$620.42
USSD4296144518 42"d x 96"w x 144"h - SD 3-Tier Teardrop Pallet Rack Starter Unit - 5-1/8"h Beams (USSD4296144518)
$668.54
USSD4296144600 42"d x 96"w x 144"h - SD 3-Tier Teardrop Pallet Rack Starter Unit - 6"h Beams (USSD4296144600)
$706.64
USSD42144144650 42"d x 144"w x 144"h - SD 3-Tier Teardrop Pallet Rack Starter Unit - 6-1/2"h Beams (USSD42144144650)
$940.64
USSD42108144418 42"d x 108"w x 144"h - SD 3-Tier Teardrop Pallet Rack Starter Unit - 4-1/8"h Beams (USSD42108144418)
$658.04
USSD42108144518 42"d x 108"w x 144"h - SD 3-Tier Teardrop Pallet Rack Starter Unit - 5-1/8"h Beams (USSD42108144518)
$711.92
USSD42144144458 42"d x 120"w x 144"h - SD 3-Tier Teardrop Pallet Rack Starter Unit - 4-5/8"h Beams (USSD42120144458)
$726.02
USSD42120144518 42"d x 120"w x 144"h - SD 3-Tier Teardrop Pallet Rack Starter Unit - 5-1/8"h Beams (USSD42120144518)
$756.44
USSD42144144518 42"d x 144"w x 144"h - SD 3-Tier Teardrop Pallet Rack Starter Unit - 5-1/8"h Beams (USSD42144144518)
$839.06
Check the items you wish to purchase, then click


Capacity Chart:
Upright Frames Weight Capacity - 48" Beam Shelf Spacing
42"d x 144"h 16,000 lbs
Step Beams Weight Capacity per Pair of Beams
96"w x 3-1/2"h 3,385 lbs
96"w x 4-1/8"h 5,005 lbs
96"w x 5-1/8"h 7,080 lbs
96"w x 6"h 9,135 lbs
108"w x 4-1/8"h 4,025 lbs
108"w x 5-1/8"h 6,280 lbs
120"w x 4-5/8"h 4,340 lbs
120"w x 5-1/8"h 5,645 lbs
144"w x 5-1/8"h 3,920 lbs
144"w x 6-1/2"h 7,160 lbs




Extended Information:

Includes

  • (2) 42"d x 144"h Vista Green Standard Duty Upright Frames
  • (6) Safety Orange Step Beams (size based on selected option above)

Product Details

  • Dimensions: 42"d x 96-144"w x 144"h
  • Finish: Powder Coating
  • Material: 14 Gauge Steel
  • Manufacturer: Unirak
  • Weight: 291.60-453.60 lbs
  • Made in MI, USA
  • *Does not include wire decking

Assembly

  • Easy to assemble
  • No tools required
