2-Tier Teardrop Pallet Rack Starter Units - 42"d x 96"h

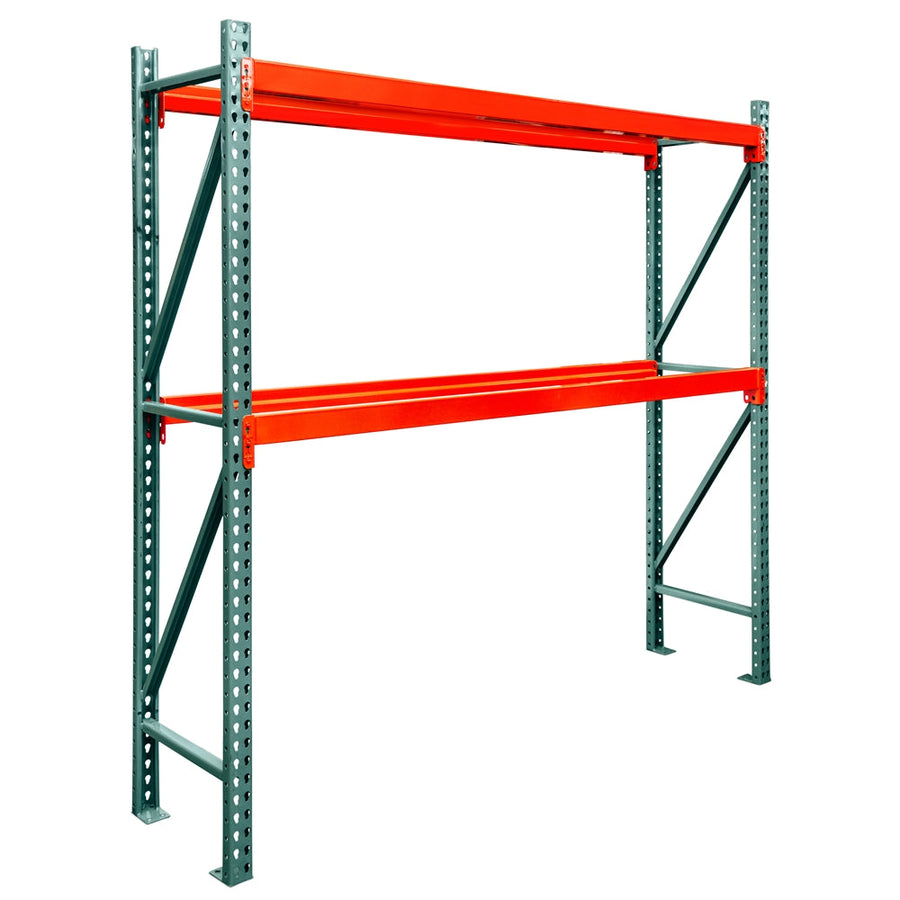

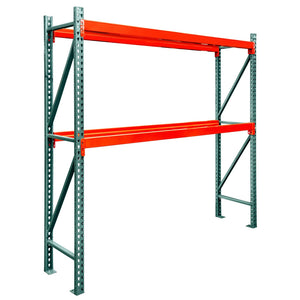

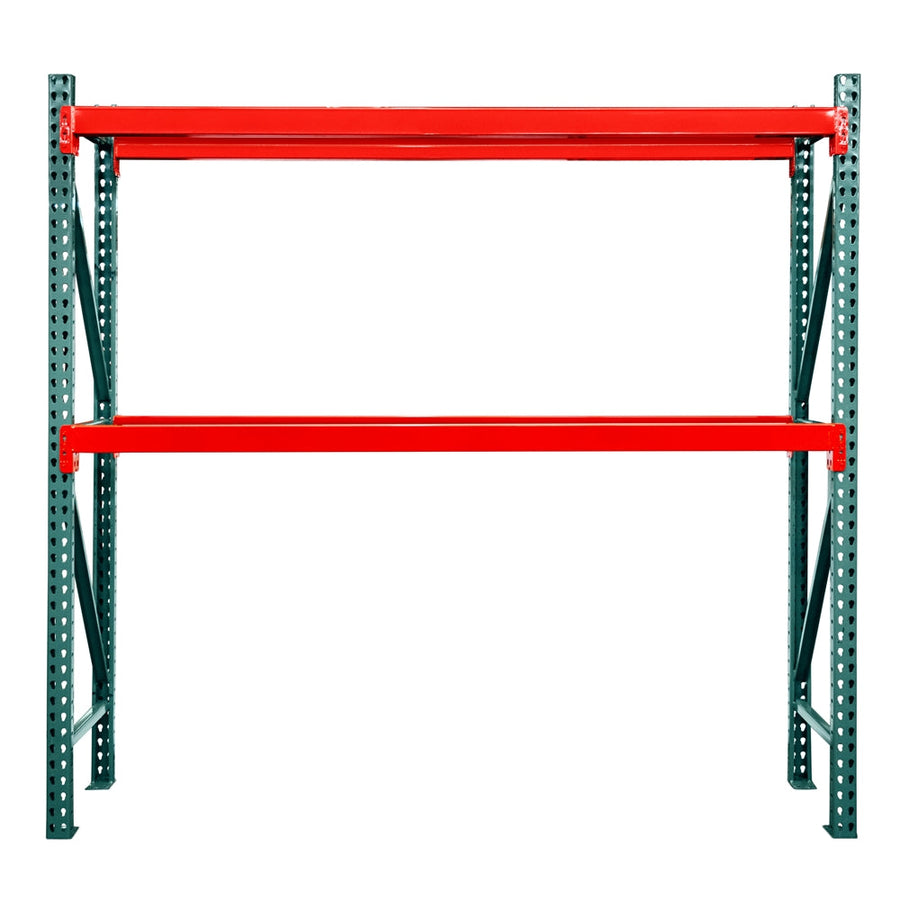

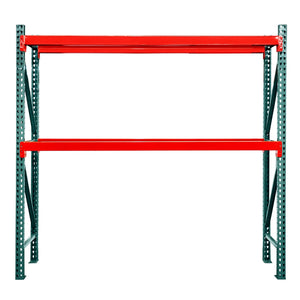

2-Tier Pallet Rack Starter Units - 42"d x 96"h



Additional Photos

In addition to organizing your facility, our pre-configured Unirak units offer several benefits. In one easy purchase, you will have efficient racking that is cost effective, simple to install, and modifiable. Teardrop Pallet Rack Starter Units are ideal for general warehouse environments and distribution centers that have ever-changing storage needs.

*Please note, unit does not include wire decking.

  • Made in Michigan
  • Meets requirements of the RMI
  • 55 KSI high-strength steel construction
  • Durable high-gloss powder coat finish resists abrasion
  • Uprights are punched on 2" centers for easy beam adjustment
  • Beams have 3 rivet connection and safety clips to assure secure locking and rack integrity
  • 1-5/8" step within beam accommodates decking

For weight capacities, please see chart below.

Availability: Stocked in our warehouse. Ships next business day.

Starting at: $411.28

Item# Item Name Item Price Qty Add
US429696350 42"d x 96"w x 96"h - 2-Tier Teardrop Pallet Rack Starter Unit - 3-1/2"h Beams (US429696350)
$411.28
US429696418 42"d x 96"w x 96"h - 2-Tier Teardrop Pallet Rack Starter Unit - 4-1/8"h Beams (US429696418)
$435.60
US429696518 42"d x 96"w x 96"h - 2-Tier Teardrop Pallet Rack Starter Unit - 5-1/8"h Beams (US429696518)
$468.88
US429696600 42"d x 96"w x 96"h - 2-Tier Teardrop Pallet Rack Starter Unit - 6"h Beams (US429696600)
$495.40
US4214496650 42"d x 144"w x 96"h - 2-Tier Teardrop Pallet Rack Starter Unit - 6-1/2"h Beams (US4214496650)
$657.68
US4210896418 42"d x 108"w x 96"h - 2-Tier Teardrop Pallet Rack Starter Unit - 4-1/8"h Beams (US4210896418)
$461.60
US4210896518 42"d x 108"w x 96"h - 2-Tier Teardrop Pallet Rack Starter Unit - 5-1/8"h Beams (US4210896518)
$498.92
US4212096458 42"d x 120"w x 96"h - 2-Tier Teardrop Pallet Rack Starter Unit - 4-5/8"h Beams (US4212096458)
$508.72
US4212096518 42"d x 120"w x 96"h - 2-Tier Teardrop Pallet Rack Starter Unit - 5-1/8"h Beams (US4212096518)
$529.80
US4214496518 42"d x 144"w x 96"h - 2-Tier Teardrop Pallet Rack Starter Unit - 5-1/8"h Beams (US4214496518)
$587.12
Check the items you wish to purchase, then click


Capacity Chart:
Upright Frames Weight Capacity - 48" Beam Shelf Spacing
42"d x 96"h 16,000 lbs
Step Beams Weight Capacity per Pair of Beams
96"w x 3-1/2"h 3,385 lbs
96"w x 4-1/8"h 5,005 lbs
96"w x 5-1/8"h 7,080 lbs
96"w x 6"h 9,135 lbs
108"w x 4-1/8"h 4,025 lbs
108"w x 5-1/8"h 6,280 lbs
120"w x 4-5/8"h 4,340 lbs
120"w x 5-1/8"h 5,645 lbs
144"w x 5-1/8"h 3,920 lbs
144"w x 6-1/2"h 7,160 lbs




Extended Information:

Includes

  • (2) 42"d x 96"h Vista Green Upright Frames
  • (4) Safety Orange Step Beams (size based on selected option above)

Product Details

  • Dimensions: 42"d x 96-144"w x 96"h
  • Finish: Powder Coating
  • Material: 14 Gauge Steel
  • Manufacturer: Unirak
  • Weight: 196.40-304.40 lbs
  • Made in MI, USA
  • *Does not include wire decking

Assembly

  • Easy to assemble
  • No tools required
