Counter Top Mounting Plate for Wire Shelving

Counter Top Mounting Plate for Wire Shelving

Additional Photos

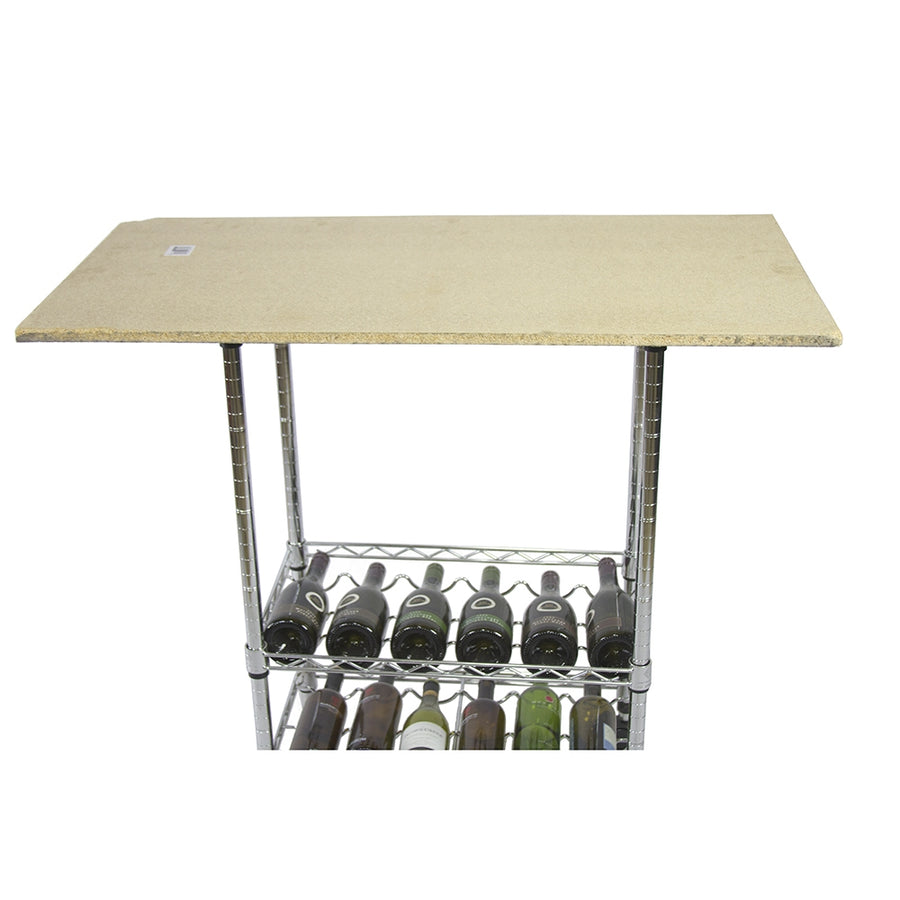

Customize your wire shelving with a solid table or counter top. Add an anchor to each post for a sturdy base connection.

Starting at $9.49

Availability: Usually Ships in 1-2 Business Days
Product Code: SI-AWTJ-P

Click to view a larger image of each product

Individual - $9.49
4 Pack - $36.06

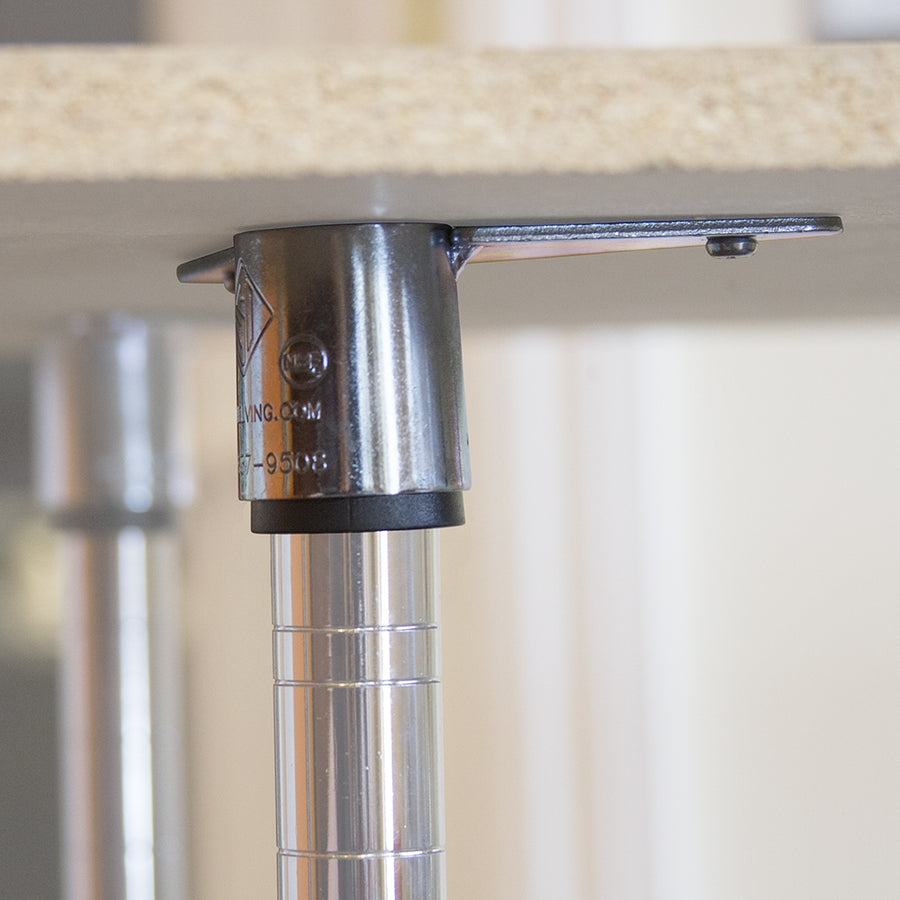

The piece fits onto our wire shelving posts with split sleeves. Simply attach the anchor to a wood counter top using the included hardware.

  • Two holes located 3.5 inches apart allow secure attachment to almost any table

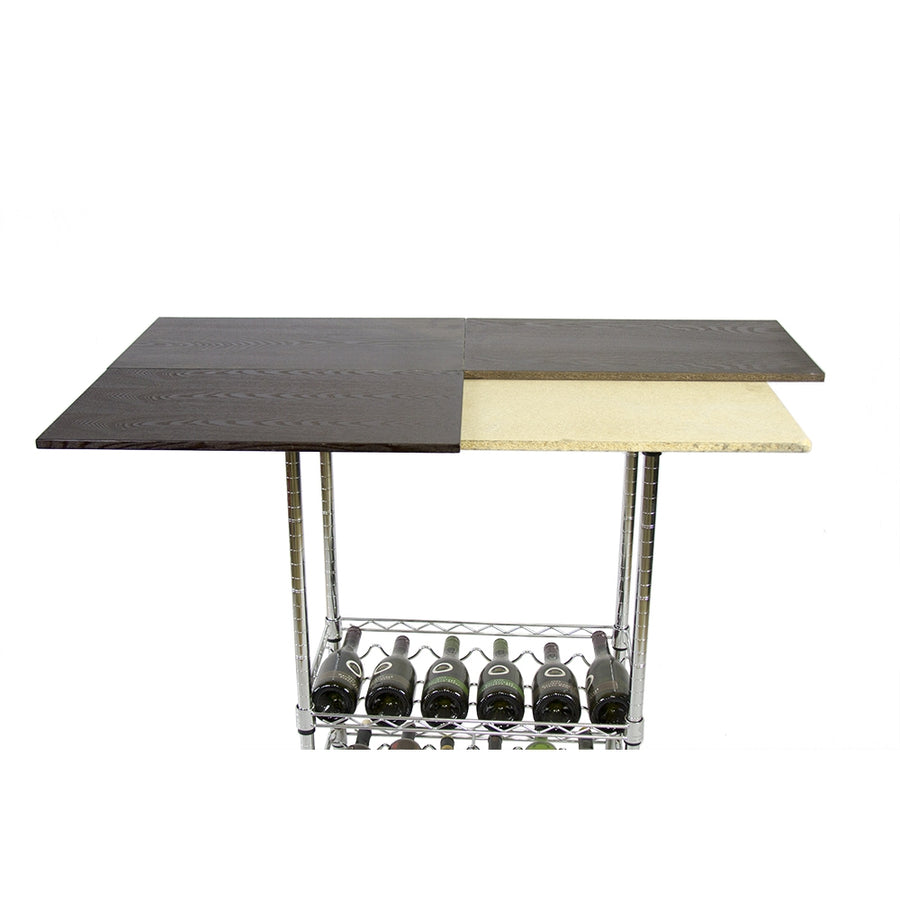

  • Can be adjusted every 1 inch along the post, allowing you to have multiple solid surfaces in a single unit
Product Details
  • Triangle plate extends 2.25 inches from post at right angle
  • Longer side is approximately 4.75 inches long
  • Can support up to 300 lbs

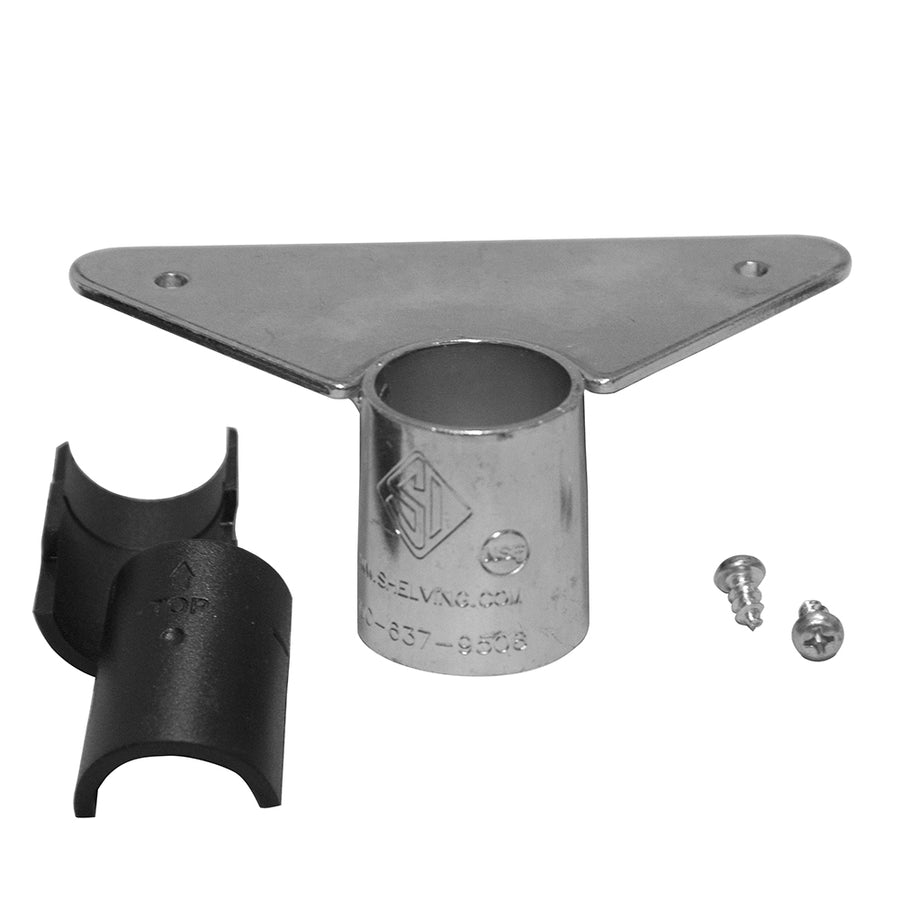

  • Kit includes: (1) Counter Top Anchor, (1) Plastic Shelf Clip (2) 1/4 inch screws
Assembly Instructions
  • Attach shelf clips to desired height along post

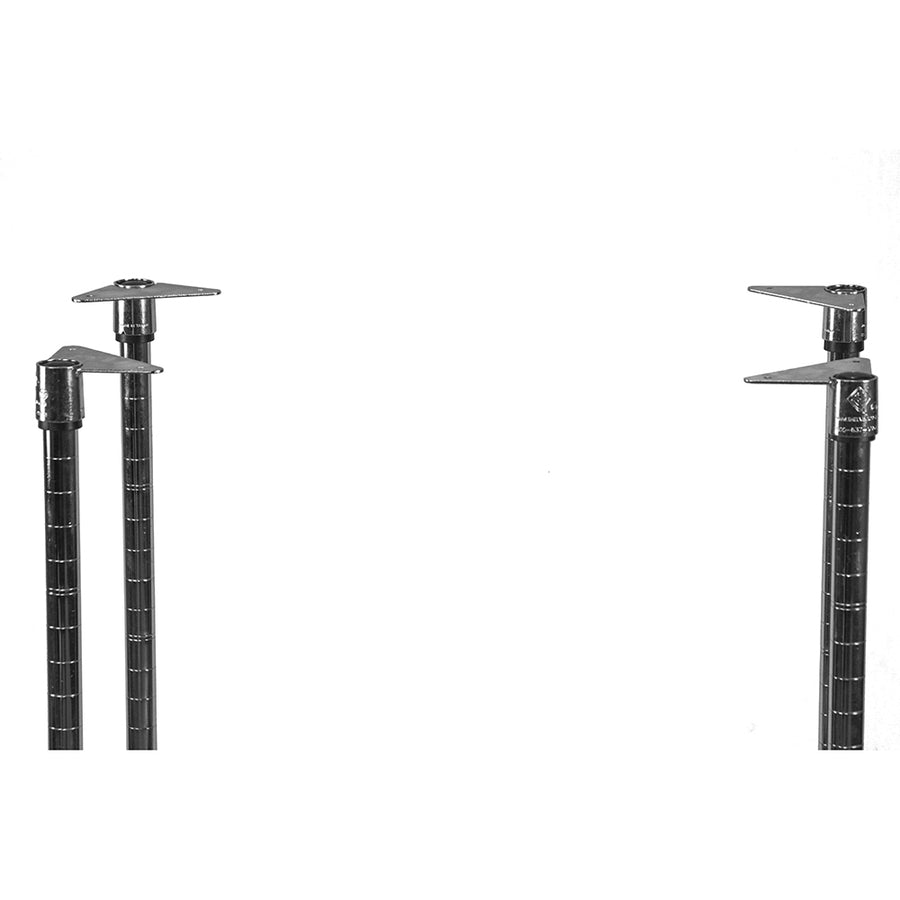

  • Lower anchor onto post, aligning straight edges with the outer edges of the unit
  • Set table top on anchor, ensure that it is positioned evenly on all sides, then mark where the holes are with pencil

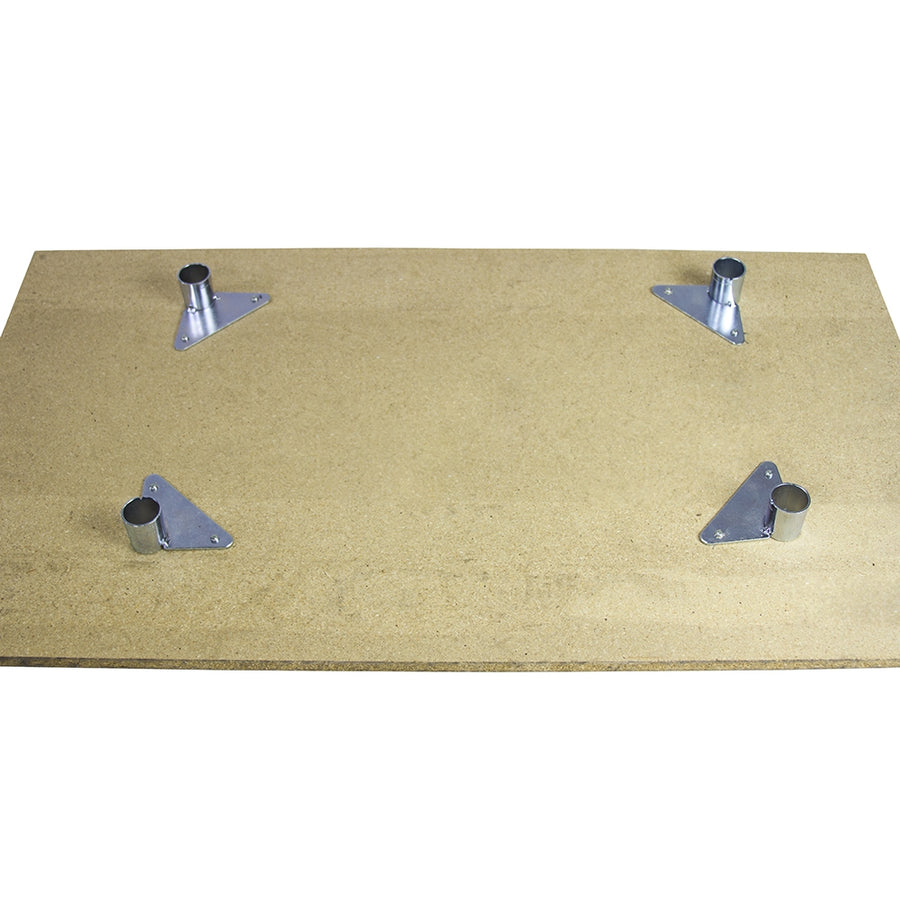

  • Remove the top, setting it face down. Place the anchors over the holes and screw into place
  • Lower the table with attached anchors onto posts, tap corners for secure connection

Note: Particle board can be used as a substrate for finer surface materials (such as marble) for a more refined effect.

Average Customer Review: Average Customer Review: 4 of 5 4 of 5 Total Reviews: 2 Write a review.

  6 of 6 people found the following review helpful:
5 of 5 Perfect item for custom tables August 6, 2019
Reviewer: Daniel Soto from Destin, FL
Bought a set to make a custom wood top table in our coffee truck. We mounted 3/4" thick 76" long sealed plywood sheet on a 36" tall 60" long wire shelf base. I couldn't be happier. They feel sturdy and have not had any problems with it, over a year later. About to buy another set for custom piece in out catering kitchen,

Was this review helpful to you?

  2 of 2 people found the following review helpful:
3 of 5 Acceptable, but overpriced March 31, 2017
Reviewer: David C from Houston, TX
This is a unique item that I cannot find from any other vendor, so I can understand the pricing.  However, the quality of the construction is questionable.

The mounting plates are only tack welded to the mounting tubes in two places, and can easily be bent up and down.  The mounting tube is not an actual tube, but a rolled piece of flat steel with an open seam on the inner edge (not shown in any of the photos). Finally, two of the four plates I ordered were not welded flush with the upper edge of the tube. As a result, there are small gaps between the plate and underside of the installed work surface.

Keep in mind that these plates are designed to keep a mounted work surface from moving laterally, not to bear weight on the mounting plates themselves.  That being said, I think they will serve their purpose well.
