Heavy Duty Inclined Cantilever Rack Arms

Heavy Duty Inclined Cantilever Rack Arms



Additional Photos

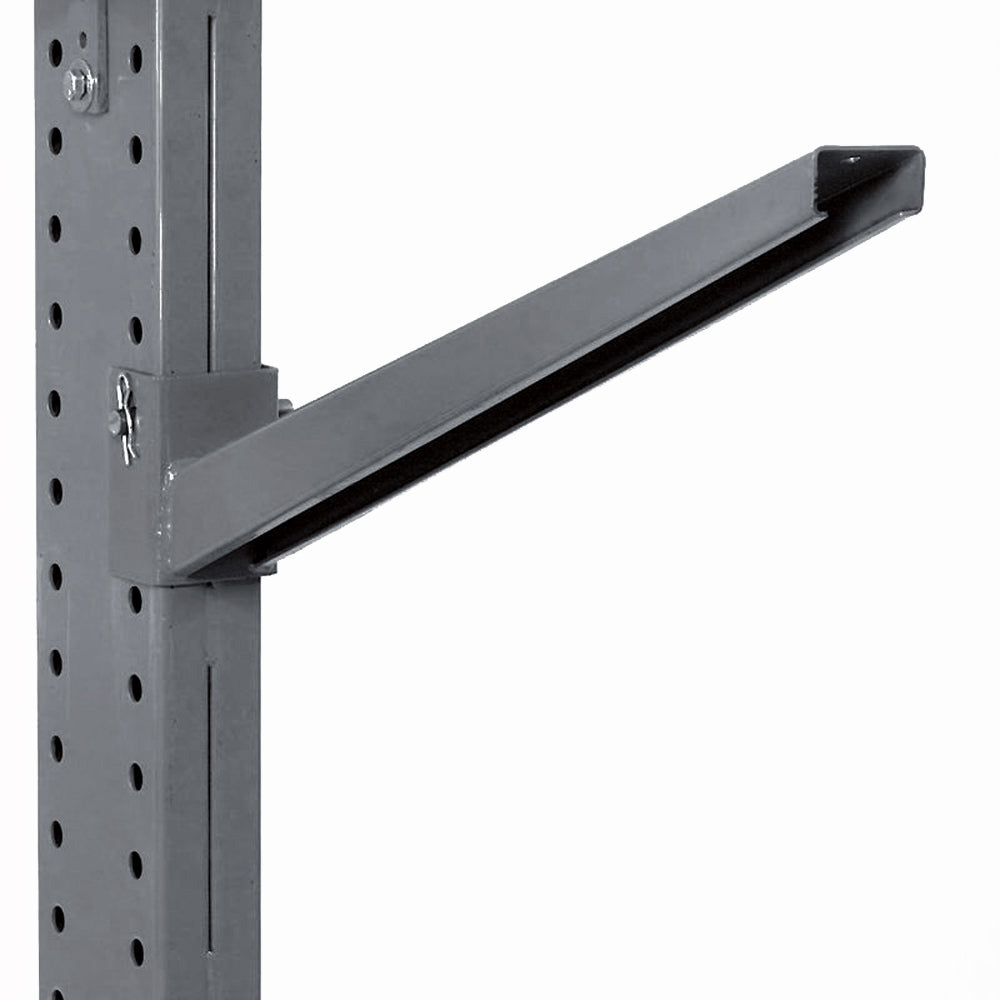

To install additional storage levels on heavy duty cantilever racking, this component is required. These individually-sold inclined arms are ideal for storing round stock such as pipes and tubing, that may roll forward.

  • Sold individually (2 arms required per level)
  • Ideal for storing round materials
  • Adjustable on 3" centers
  • Hair pin keeper for quick, secure installation

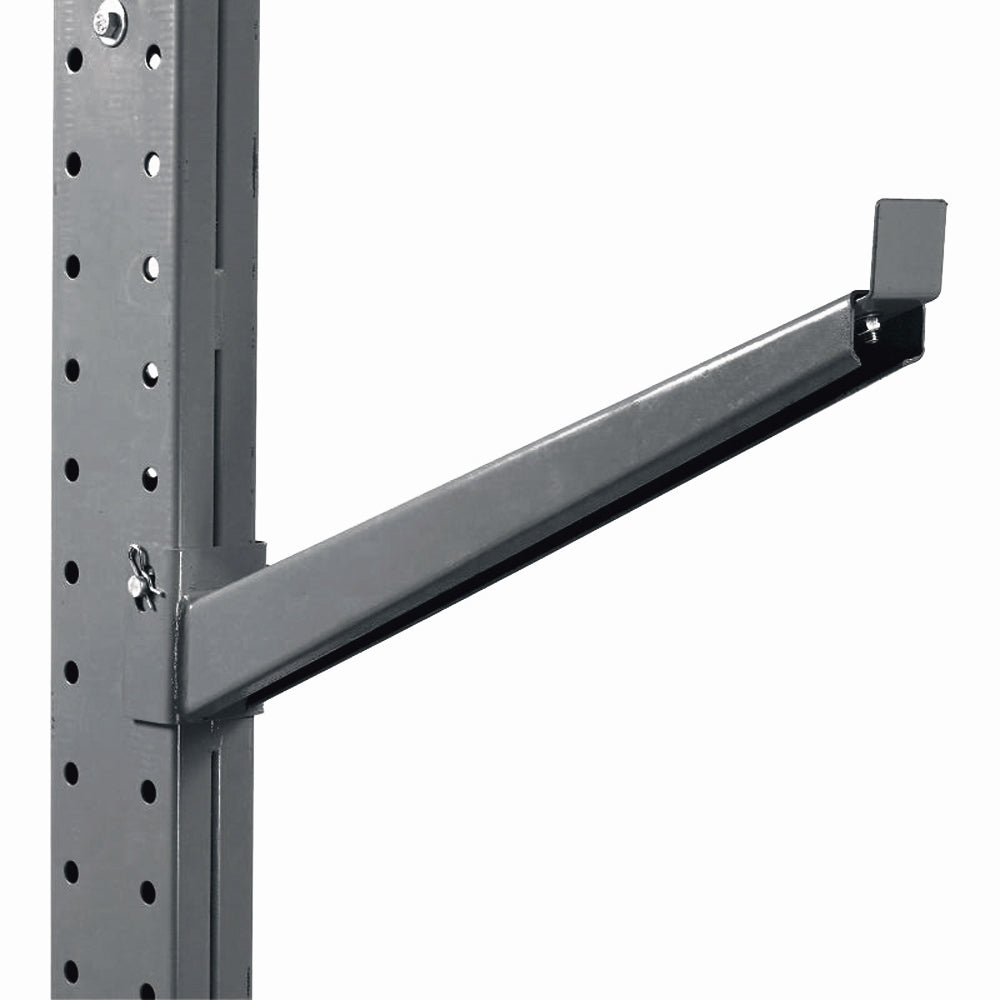

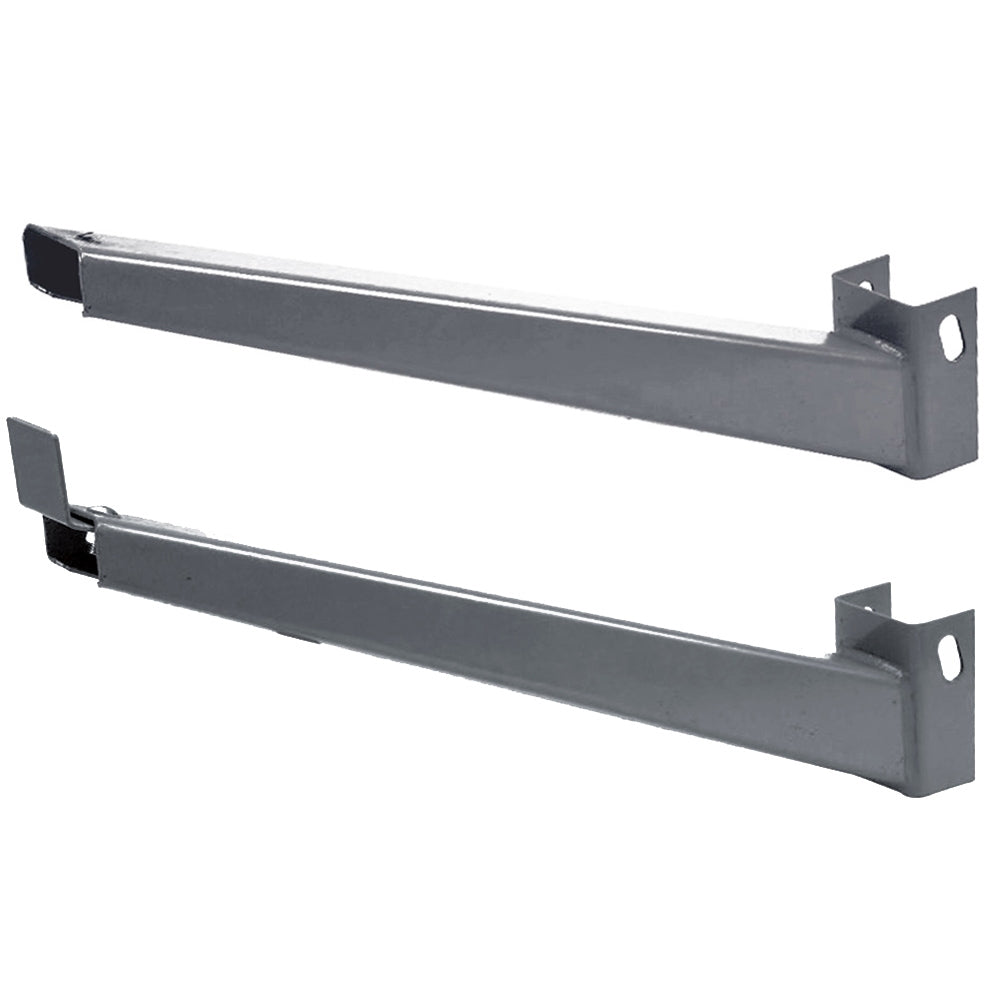

  • Available with or without lip

Need heavy duty cantilever racking? Browse HERE.

This product ships via freight.

Starting at: $56.90

Item# Item Name Item Price Qty Add

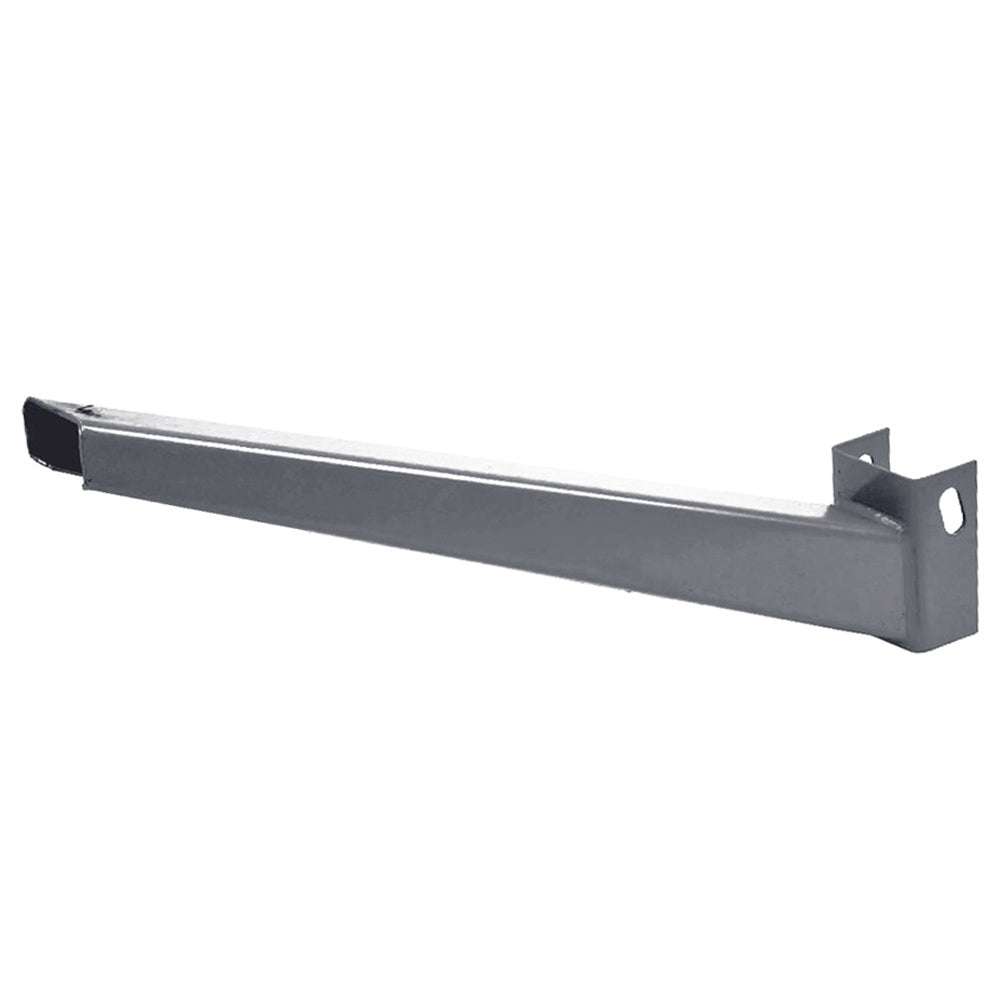

IA12 12" HD Inclined Cantilever Rack Arm (IA12)
$56.90
IA12L 12" HD Inclined Cantilever Rack Arm w/ Lip (IA12L)
$56.90
IA18 18" HD Inclined Cantilever Rack Arm (IA18)
$65.48
IA18L 18" HD Inclined Cantilever Rack Arm w/ Lip (IA18L)
$65.48
IA24 24" HD Inclined Cantilever Rack Arm (IA24)
$72.90

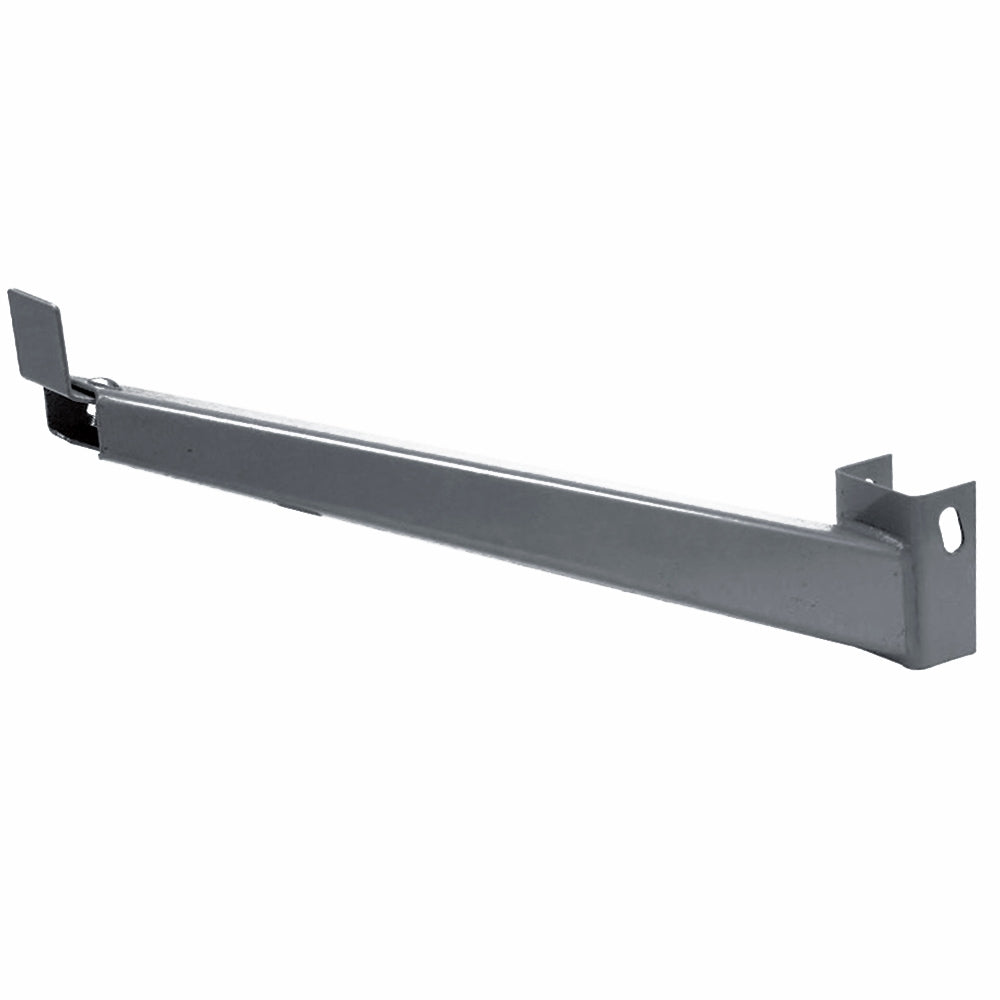

IA24L 24" HD Inclined Cantilever Rack Arm w/ Lip (IA24L)
$72.90
IA30 30" HD Inclined Cantilever Rack Arm (IA30)
$84.52
IA30L 30" HD Inclined Cantilever Rack Arm w/ Lip (IA30L)
$84.52
IA36 36" HD Inclined Cantilever Rack Arm (IA36)
$91.98
IA36L 36" HD Inclined Cantilever Rack Arm w/ Lip (IA36L)
$91.98
IA42 42" HD Inclined Cantilever Rack Arm (IA42)
$103.43
IA42L 42" HD Inclined Cantilever Rack Arm w/ Lip (IA42L)
$103.43
IA48 48" HD Inclined Cantilever Rack Arm (IA48)
$112.60
IA48L 48" HD Inclined Cantilever Rack Arm w/ Lip (IA48L)
$112.60
Check the items you wish to purchase, then click


Capacity Chart:

Arm Size Weight Capacity
12" 3,000 lbs, evenly distributed
18" 2,550 lbs, evenly distributed
24" 2,000 lbs, evenly distributed
30" 1,500 lbs, evenly distributed
36" 1,200 lbs, evenly distributed
42" 1,100 lbs, evenly distributed
48" 1,000 lbs, evenly distributed





Extended Information:

Product Details

  • Finish: Gray Enamel
  • Material: Steel
  • Pitch: 20 degrees or approximately 4.36" per foot
  • Manufacturer: Modern Equipment (MECO)
  • Series: 4000
  • *NOT interchangeable with Series 1000 products or other cantilever racking brands.
