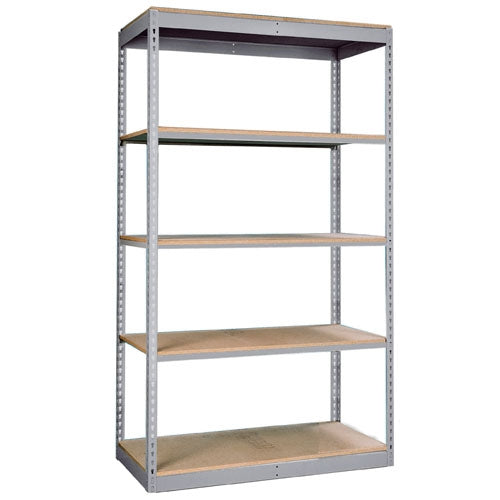

Lyon 12"d 5-Shelf Light-Duty Boltless Shelving Starter Units - Gray
12"D x 36"W x 84"H
Regular price
Starting at
$125.78
Regular price
Designed for maximum vertical space between levels and minimal installation time, this metal shelving is a great storage solution for warehouse, office, and retail operations.
- Open access to contents from all sides
- Made of 14-gauge, powder-coated steel
- 1-1/2"d x 1-1/2"w x 84"h angle posts
- Levels easily adjust on 1-1/2" centers
- Optional 5/8" thick particle board decking
- Configurable with casters (sold separately here)
- Easy to assemble
To ensure rivets are properly set on posts, firmly tap beams with a rubber mallet.
Availability: Stocked in our warehouse. Ships next business day.
Available for FREE pickup at our warehouse. View address
Product Details
- Beam Dimensions: Single Rivet - 3/4"w x 1"h, Double Rivet - 3/4"w x 2-5/8"h
- Finish: Gray Powder Coating
- Material: 14 Gauge Steel, Particle Board
- Manufacturer: Lyon
- *Double Rivet Angle Beams are to be used on the top and bottom level for stability.
- *Hardware to anchor to floor not included.
Includes
- (4) 1-1/2"d x 1-1/2"w x 84"h Rivet Angle Posts
- (4) 12"d Front-to-Back Double Rivet Angle Beams
- (4) Left-to-Right Double Rivet Angle Beams (width based on selected option)
- (6) 12"d Front-to-Back Single Rivet Angle Beams
- (6) Left-to-Right Single Rivet Angle Beams (width based on selected option)
- (5) 12"d 5/8" Particle Board Decks (optional)
Assembly
- Easy to assemble
- No fasteners or special tools required
- Boltless Shelving Assembly Guide
