2-Tier Teardrop Pallet Rack Add-On Units - 42"d x 120"h
42"D x 96"W x 120"H
Regular price
Starting at
$213.02
Regular price
Immediately increasing the storage capacity of your current system and offering the flexibility to reconfigure as needed, our add-on teardrop pallet racking supports operational changes without disruptions.
- Extends existing racking horizontally to increase storage space
- Durable high-gloss powder coat finish resists abrasion
- Upright punched on 2" centers for easy beam adjustment
- Beams with 3-rivet connection and safety clips for rack integrity
- 1-5/8" step within beam accommodates decking (sold separately here)
Custom coloring available. For more information, please contact us at 1-800-637-9508.
Availability: Stocked in our warehouse. Ships next business day.
Available for FREE pickup at our warehouse. View address
Product Details
- Meets requirements of the RMI
- Finish: Powder Coating
- Material: 14 and 16 Gauge Steel
Includes

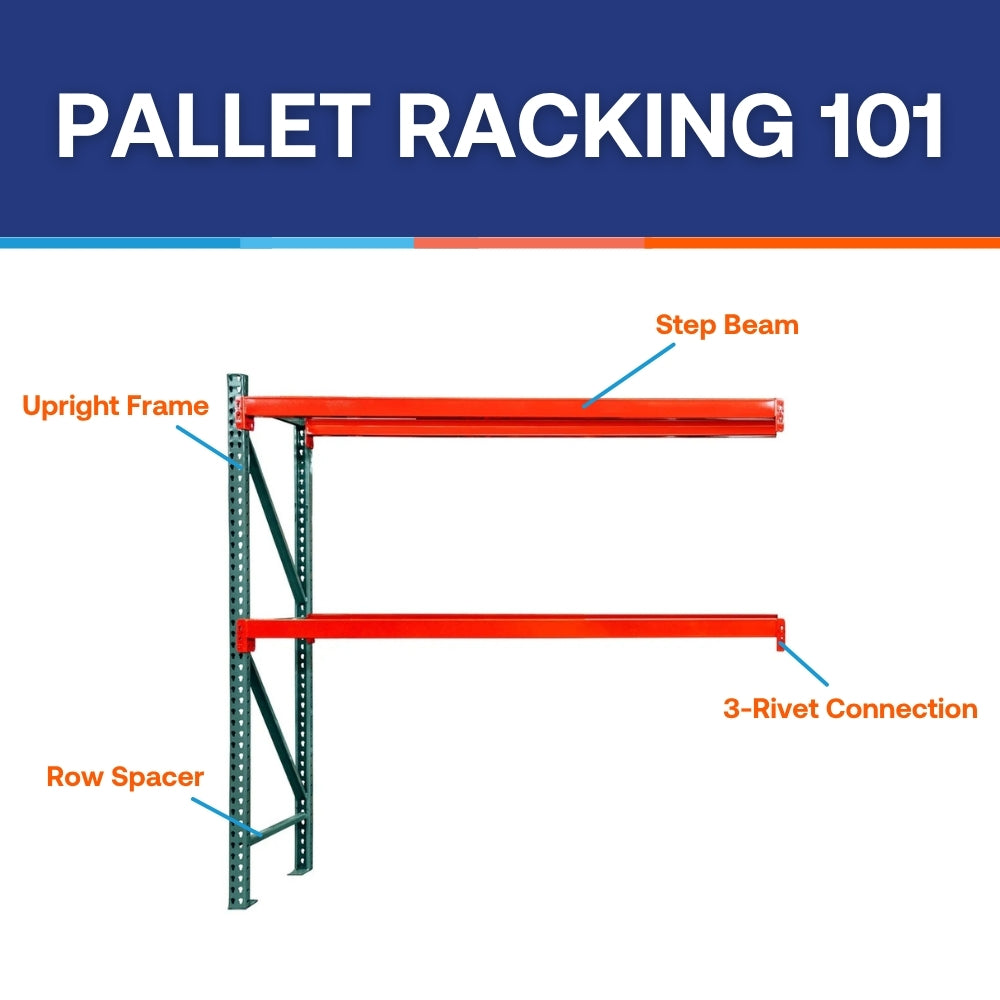

- (1) 42"d x 120"h Green Upright Frame
- (4) Orange Step Beams (size based on selected option above)
Assembly
- Easy to assemble. No tools required
Tech Specs
Upright Frame | Capacity - 48" Beam Shelf Spacing |
---|---|
42"d x 120"h, 3" x 1" Column (14 GA) | 16,000 lbs |
Step Beams | Capacity per Pair of Beams |
96"w x 3-1/2"h (14 GA) | 3,385 lbs |
96"w x 4"h (16 GA) | 4,000 lbs |
96"w x 4-1/2"h (16 GA) | 5,100 lbs |
96"w x 5-1/8"h (14 GA) | 7,080 lbs |
96"w x 6"h (14 GA) | 9,135 lbs |
108"w x 4-1/8"h (14 GA) | 4,025 lbs |
108"w x 5"h (14 GA) | 5,000 lbs |
120"w x 4-5/8"h (14 GA) | 4,340 lbs |
120"w x 5-1/8"h (14 GA) | 5,645 lbs |
144"w x 5-1/8"h (14 GA) | 3,920 lbs |
144"w x 6-1/4"h (14 GA) | 7,000 lbs |
Build Your Own Storage
Don't see what you need for your space? We have over one million configurable options. Begin building on your own or contact one of our storage experts today.
