Red Steel Material Handling

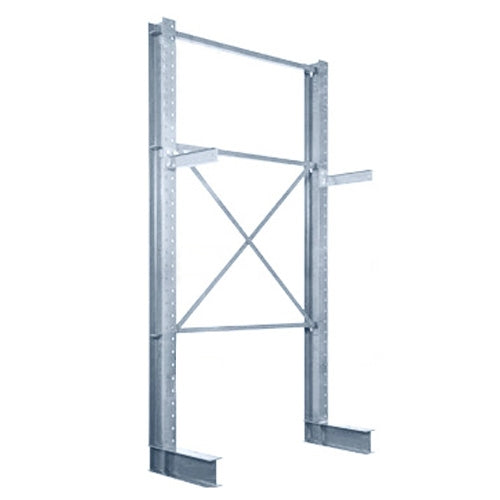

20'h Single Sided Galvanized Cantilever Rack with 36" Arms
If you have unwieldy, bulky, and long items or materials to store, this long-lasting industrial racking system is the best solution to organize your space. Single Sided Galvanized Cantilever Racks are perfect against a wall where access from only one side is needed.
- Highly resistant to rust, corrosion, and mechanical damage
- Unobstructed design for easy loading/unloading
- Constructed with structural steel I-beams
- Arms adjust on 4" centers
- Optional arm stops help keep items secure
- Base can be utilized for extra storage
- Recommended for outdoor, cooler, freezer, and chemical applications
*Please note, the quantity of braces included differs from the product image. See the Includes section below for a complete list of components.
Looking to buy individual components? Browse HERE.
Ships on pallet via LTL freight.
Product Details
- Tower Dimensions: 18"d x 8"w x 240"h
- Base Dimensions: 36"d x 8"w x 18"h
- Arm Dimensions: 36"d x 3"w x 5.7"h, 36"d x 4"w x 7.7"h
- Finish: Hot-Dipped Galvanized Coating
- Material: Steel
- Manufacturer: Red Steel Material Handling
Includes
- (2) 240" Galvanized Cantilever Towers
- (2) 36" Galvanized Cantilever Bases
- (2) 36" Galvanized Cantilever Arms
- (2) Galvanized Cantilever Arm Stops (optional)
- Galvanized Cantilever Brace Set (size based on selected option above)
- (2) X-Braces, (5) H-Braces
Tech Specs
Weight Capacity
- 240" Towers - 8,000 lbs
- 36" x 3" Arms - 2,100 lbs
- 36" x 4" Arms - 3,400 lbs
