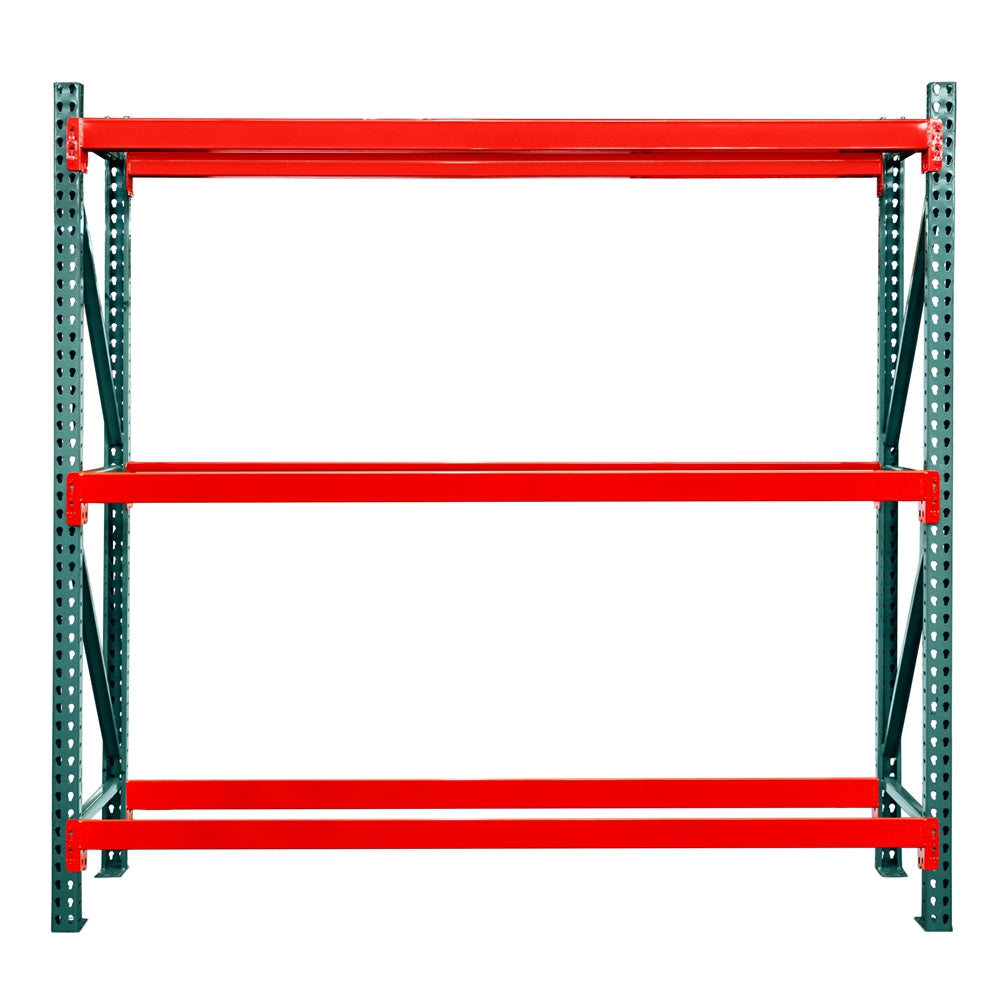

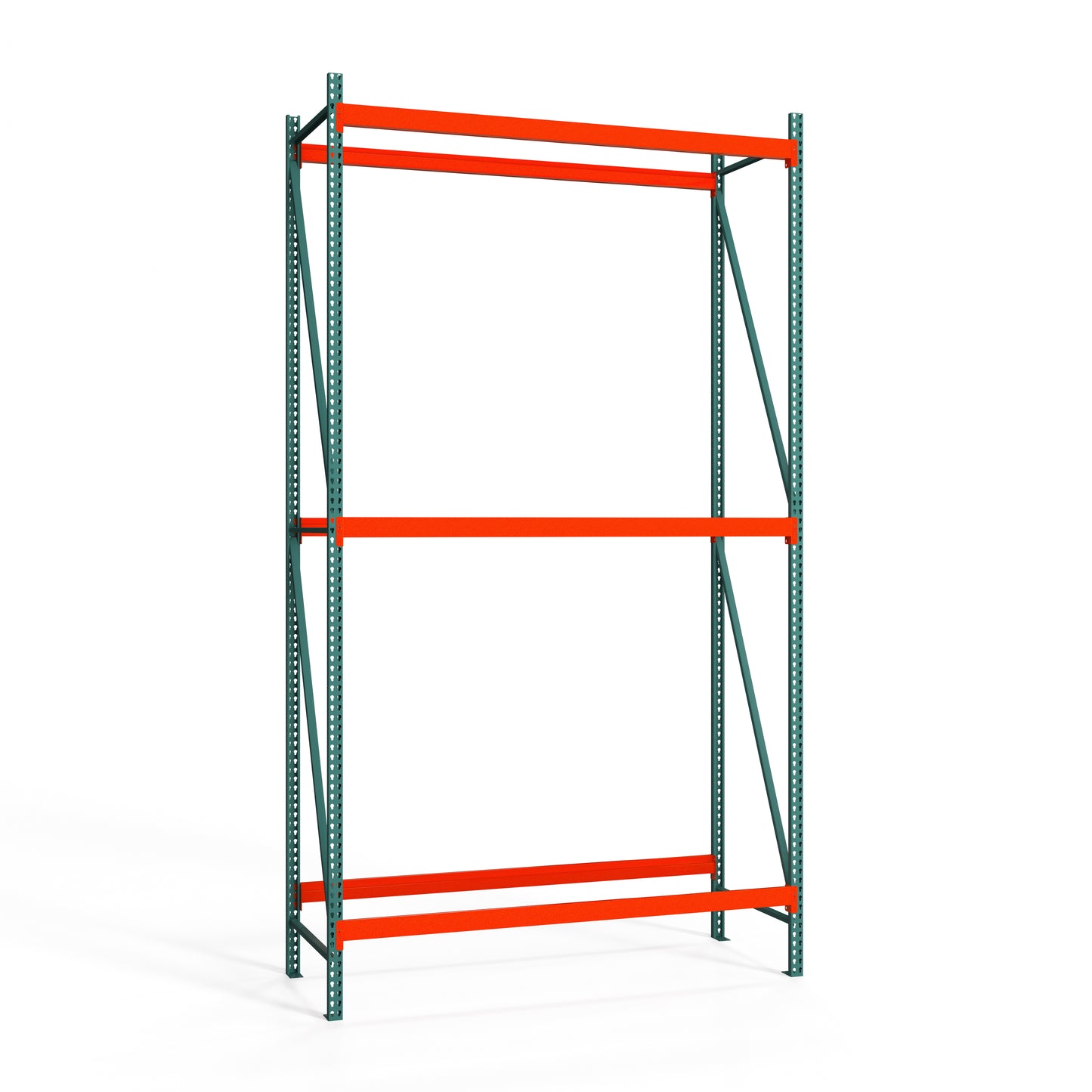

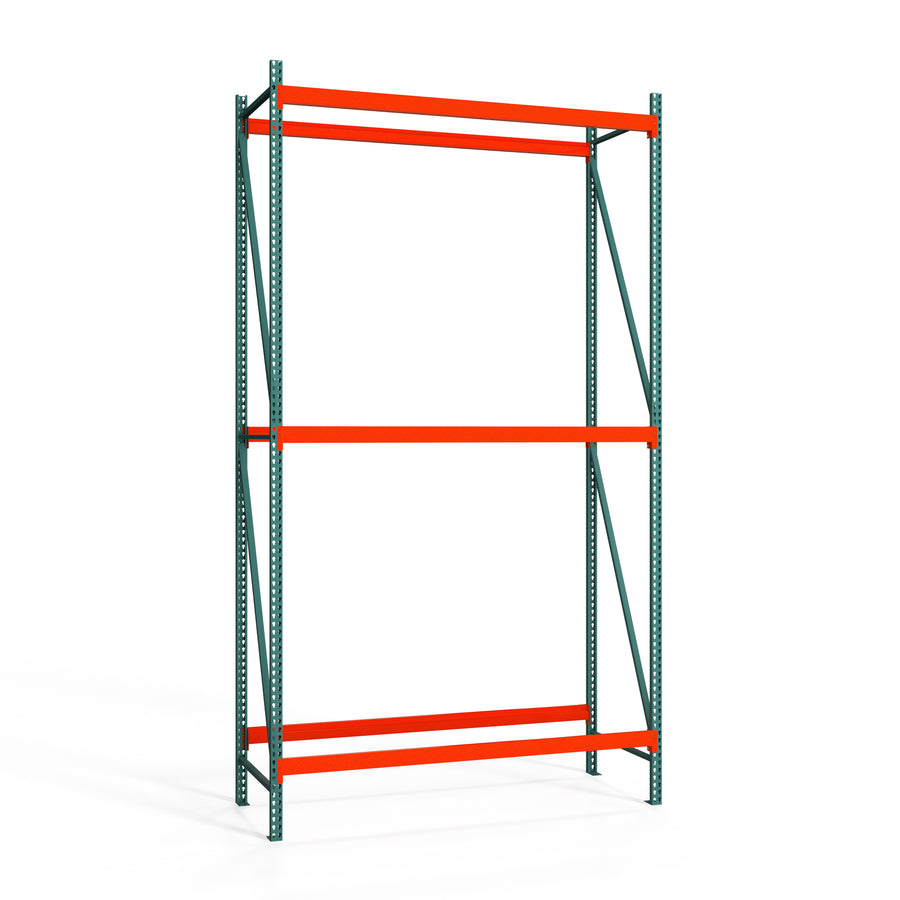

3-Tier Teardrop Pallet Rack Starter Units - 42"d x 192"h
42"D x 96"W x 192"H
Our pre-configured teardrop pallet rack starter units are economical, easy to construct, and adjustable. And in just one simple purchase, you can have efficient racking to organize your facility. Perfect for distribution centers and warehouse environments with changing storage needs.
- Durable high-gloss powder coat finish resists abrasion
- Uprights are punched on 2" centers for easy beam adjustment
- Beams with 3 rivet connection and safety clips for rack integrity
- 1-5/8" step within beam accommodates decking (sold separately here)
Custom coloring available. For more information, please contact us at 1-800-637-9508.
Availability: Stocked in our warehouse. Ships next business day.
Available for FREE pickup at our warehouse. View address
Product Details
- Meets requirements of the RMI
- Finish: Powder Coated
- Material: 14 and 16 Gauge Steel
Includes
- (2) 42"d x 192"h Green Upright Frames
- (6) Orange Step Beams (size based on selected option above)
Assembly
- Easy to assemble. No tools required
Tech Specs
Upright Frames | Capacity - 48" Beam Shelf Spacing |
---|---|
42"d x 192"h, 3" x 3" Column (14 GA) | 21,200 lbs |
Step Beams | Capacity per Pair of Beams |
96"w x 3-1/2"h (14 GA) | 3,385 lbs |
96"w x 4"h (16 GA) | 4,000 lbs |
96"w x 4-1/2"h (16 GA) | 5,100 lbs |
96"w x 5-1/8"h (14 GA) | 7,080 lbs |
96"w x 6"h (14 GA) | 9,135 lbs |
108"w x 4-1/8"h (14 GA) | 4,025 lbs |
108"w x 5"h (14 GA) | 5,000 lbs |
120"w x 4-5/8"h (14 GA) | 4,340 lbs |
120"w x 5-1/8"h (14 GA) | 5,645 lbs |
144"w x 5-1/8"h (14 GA) | 3,920 lbs |
144"w x 6-1/4"h (14 GA) | 7,000 lbs |
