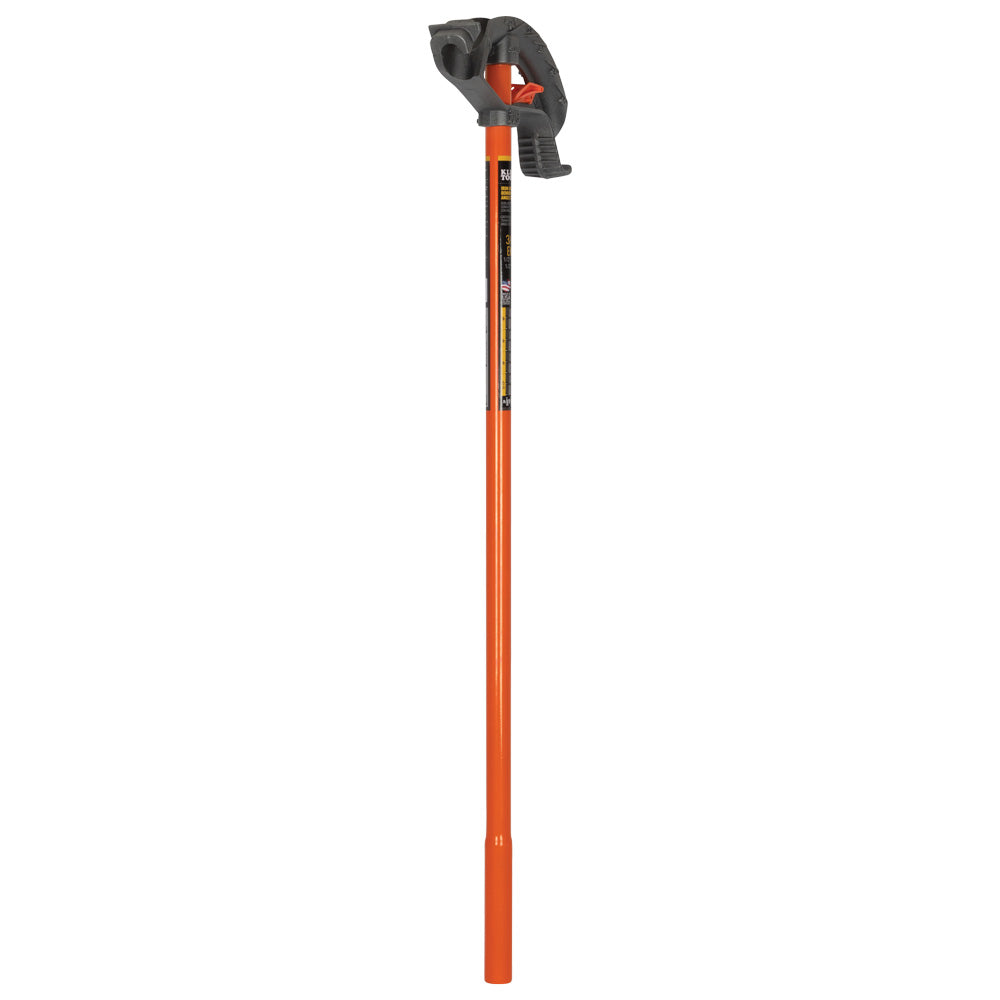

Klein Iron Conduit Bender Full Assembly, 3/4-Inch EMT with Angle Setter™ (51604)

Key Features:

• Klein 51604 iron conduit bender full assembly for 3/4" EMT, supplied with the 51609 bender head, 51427 handle and 51612 Angle Setter
• Bends 3/4" EMT as well as 1/2" rigid and 1/2" IMC conduit
• Angle Setter (patent pending) gives a hard stop at 10, 22.5, 30 and 45 degrees; head is cast-marked for 10, 22.5, 30, 45 and 60 degrees with offset multipliers
• 5.5" centerline bend radius and 6" stub-up height; 38" handle; 44.1" overall height; 9.8" wide; 6.6 lbs
• Heavy-duty cast ductile iron with a wide, angled-groove foot pedal and an interior hook surface that resists conduit roll and twist

Benefits:

• One head covers 3/4" EMT plus 1/2" rigid and IMC, so a single bender handles most of a commercial rough-in
• The hard stop repeats the same angle bend after bend, which keeps a rack of parallel runs looking consistent
• Published 5.5" centerline radius and 6" stub-up let you lay out gains and offsets by the numbers instead of trial bends
• Grooved foot pedal gives traction with a boot on it, even wet, so your weight goes into the bend
• Ductile iron and a 38" handle deliver leverage on heavier wall conduit without flexing the head

Availability: Usually Ships in Business 2-3 Days
