Teardrop Galvanized Pallet Rack Step Beams
108"W x 5.125"H

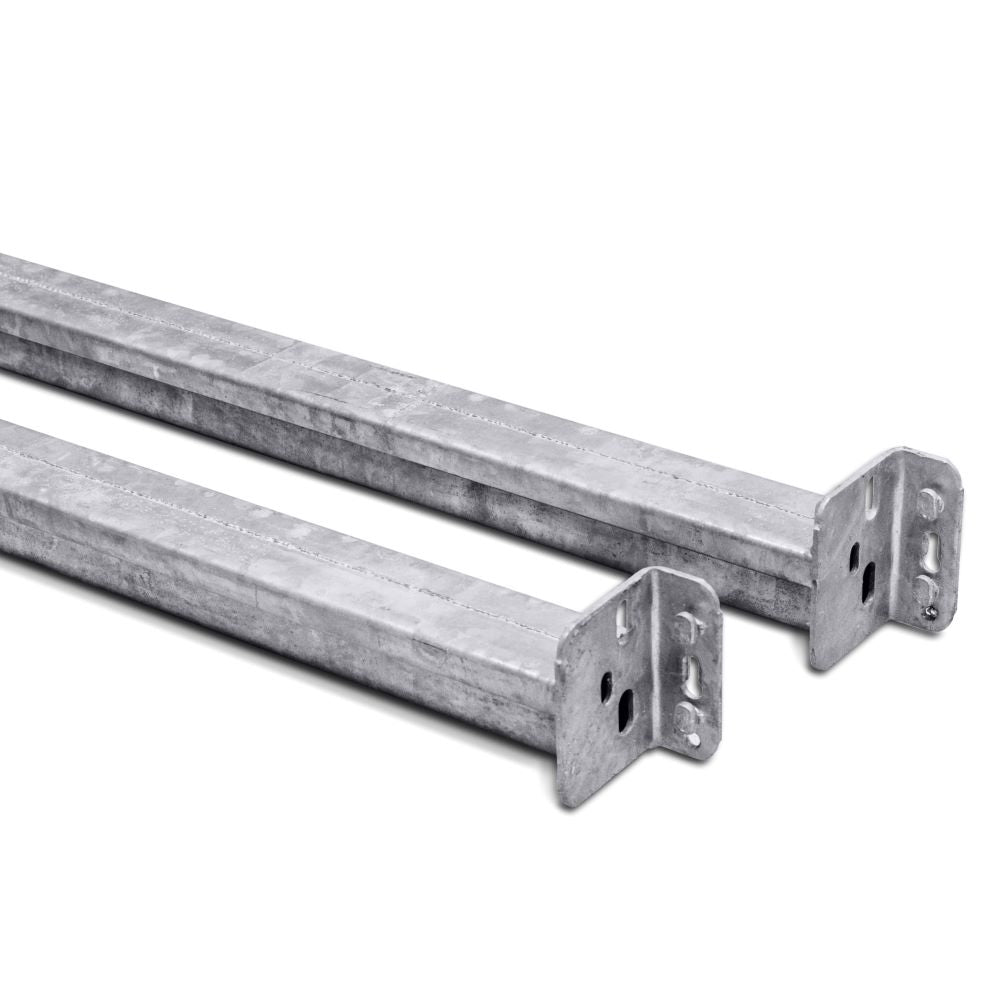

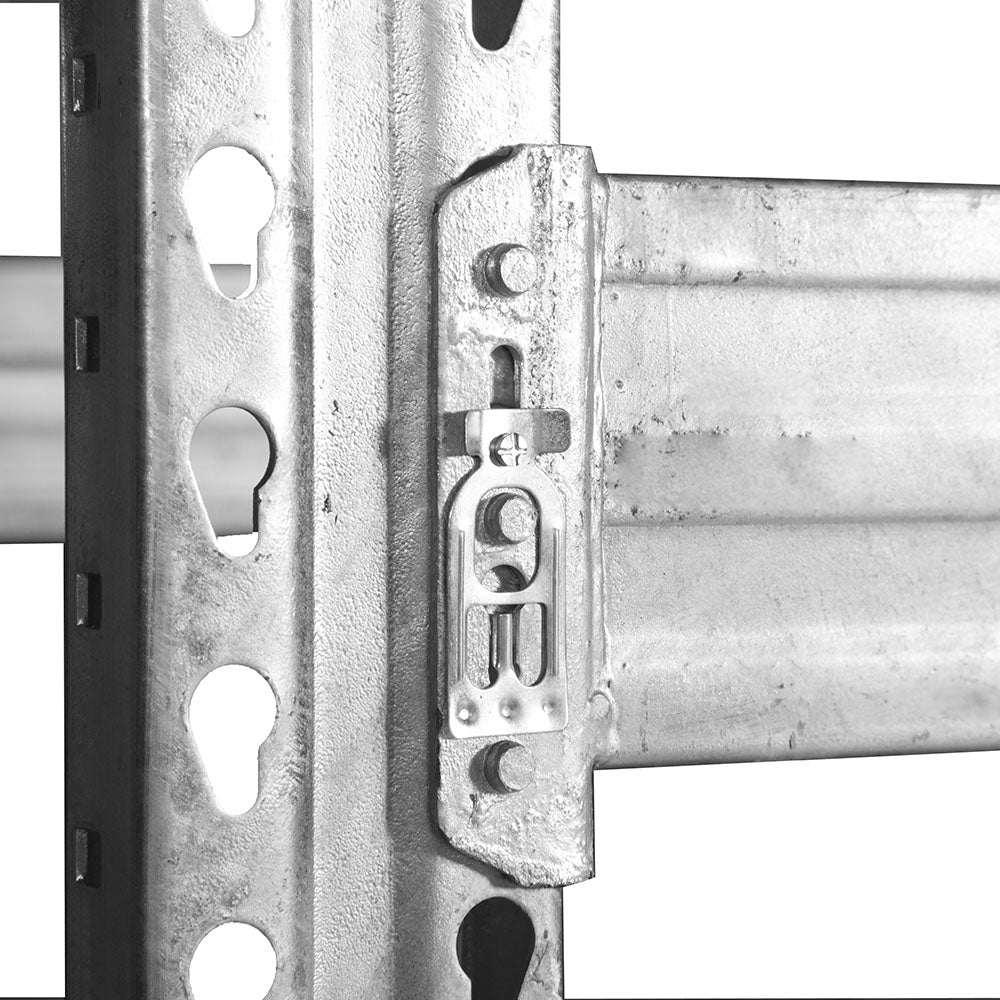

Also known as crossbeams, these heavy-duty steel rails connect to the teardrop uprights to form a secure level of pallet storage. Constructed of galvanized steel, these beams are rust-resistant and will last through exposure to drastic temperatures and harsh chemicals.
- Sold individually
- Manufactured according to RMI specifications
- Compatible with most teardrop galvanized uprights
- Uses 55 KSI high-strength steel with a 1.67 to 1 safety factor
- 14 gauge steel construction
- Resistant to rust and chemical damage
- 1-5/8"d step allows decking
- Adjusts on 2" centers for custom configurations
Looking for used beams? Contact our sales office at 1-800-637-9508 for availability and pricing of used racking.
Availability: Stocked in our warehouse. Ships next business day.
Available for FREE pickup at our warehouse. View address
Product Details
- Dimensions: 48-144"w x 2.50-6.50"h
- Material: Steel
- Weight: 18-57 lbs
Assembly
- Boltless assembly, no tools required
Tech Specs
Product Code | Step Beam Size | Weight Capacity (per pair) |
---|---|---|
USBG48-250 | 48"w x 2-1/2"h | 4,205 lbs |
USBG72-350 | 72"w x 2-1/2"h | 4,655 lbs |
USBG96-518 | 96"w x 5-1/8"h | 7,080 lbs |
USBG108-518 | 108"w x 5-1/8"h | 6,280 lbs |
USBG518-120 | 120"w x 5-1/8"h | 5,645 lbs |
USBG144-650 | 144"w x 6-1/2"h | 7,160 lbs |
Extended Info
Teardrop galvanized step beams allow you to create your own racking system. These are also ideal if you need to replace or upgrade parts of your current system.
