Triangle Footplate - 4-Pack (SI-ATF-4)
Product Code: SI-ATF-4
Regular price
$38.67
Regular price

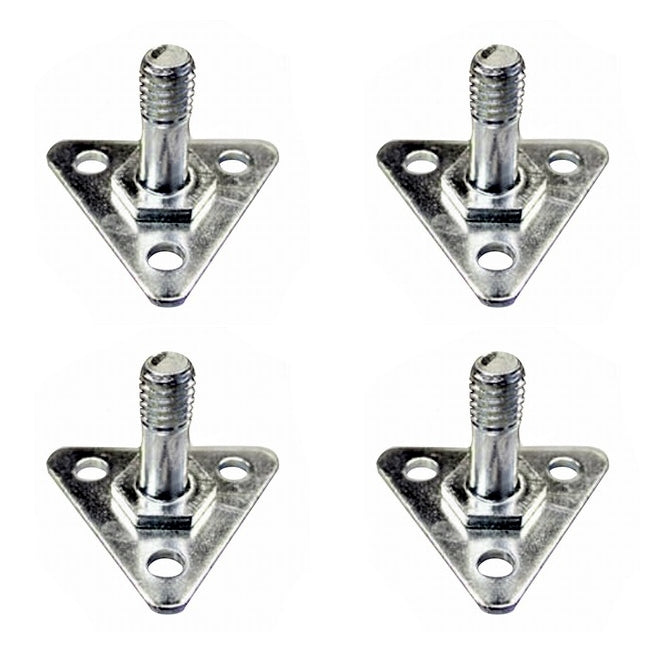

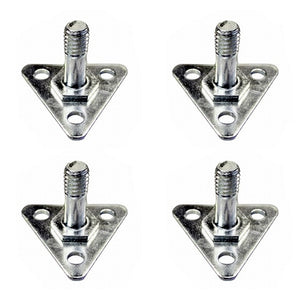

Improve the stability of your freestanding wire shelving with this optional accessory. Threading into the bottom of our 1" round chrome posts, triangle footplates replace the standard leveling bolts with a base for fastening your unit to the floor.
- Includes (4) triangle footplates
- Optimized for Shelving Inc. brand posts, designed with 12 threads per half-inch (see Product Details section below for more information)
- (3) 1/4" pre-drilled holes for anchoring wire shelving unit to floor
- 1/2" threaded bolt, 12 threads per inch
- Recommended for stabilizing narrow or tall solutions
FREE SHIPPING. Ships Next Business Day.
Available for FREE pickup at our warehouse. View address
Product Details
- Dimensions: 2.25"d x 2.25"w x 1.75"h
- Finish: Chrome
- Material: Steel
- Manufacturer: Shelving Inc.
- Quantity: 4 per pack
- *Mounting hardware not included.
This is a standard specification describing the size and spacing of a screw or bolt thread. Here's how it works:
- 1/2" - The nominal (major) diameter of the thread. The outside diameter of the external thread is approximately half an inch.
- 12 - The number of threads per inch (TPI). There are 12 complete threads in one inch of length.
- Pitch (Derived Value) - The distance from one thread crest to the next. For 1/2"-12:
- Pitch = 1 ÷ 12 inch
- Pitch ≈ 0.0833 inches per thread
- Value does not come out evenly because it's defined in inches, but was designed using nonstandard measurement. We are converting it.
- In metric terms, the thread is approximately Ø12.7 × 2.12 mm.
