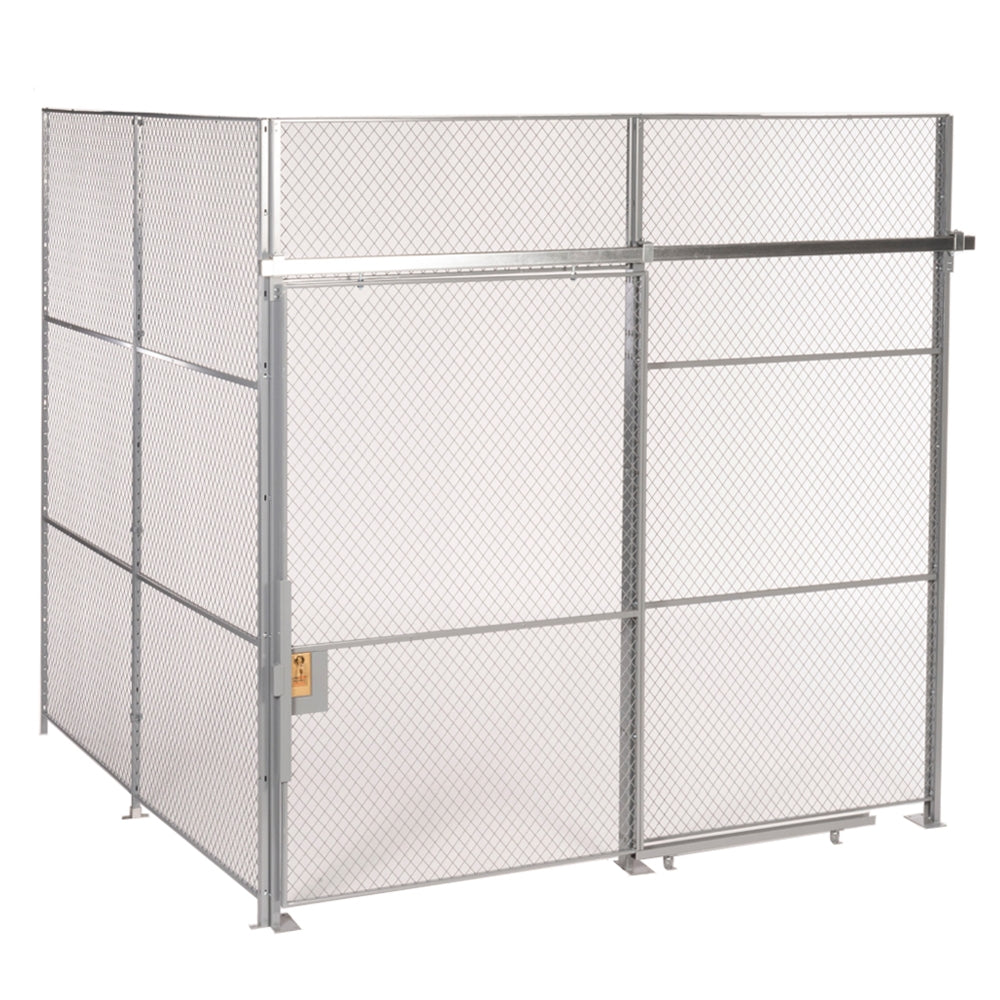

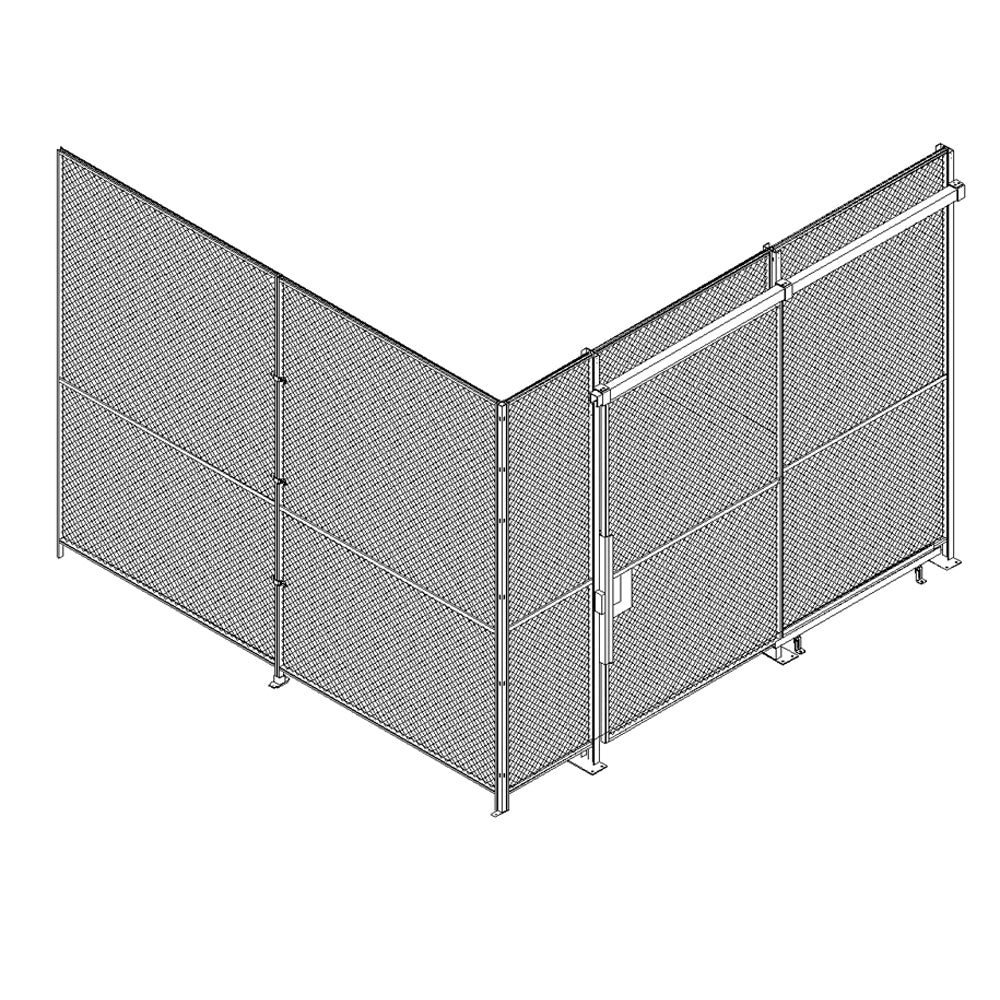

FordLogan woven wire partitions are manufactured by SpaceGuard, a company that has over 100 years of experience in secure storage. Designed with 1.5" diamond mesh openings, these structures allow for unobstructed visibility of the interior, and unrestricted air circulation and light penetration. Meets Master Specification section 10605.

Please note, overall dimensions may increase by as much as 3" in any direction due to the corner and line/stiffener posts. For additional information on this product, see our Wire Mesh Partitions Info Page.

Specifications

1. Wire Mesh: #10 W&M Gauge, .130" triple-crimped bright basic wire, 1-1/2" diamond mesh pattern.

2. Horizontal Frames: 1" x 1/2", 12-gauge roll-formed channels tenoned at ends. Series of holes for through bolting of top cap bar.

3. Vertical Frames: 1-1/4" x 5/8", 14-gauge roll-formed "C" type channels mortised at ends. Series of slotted holes for securing toadjacent panels and post.

4. Center Reinforcement Bar: Two 1" x 3/8", 12-gauge roll-formed channels riveted together through mesh 42" above finished floor on 7', 8', and 9' high panels. Four channels are used on 10' and 12' high panels.

5. Panels: Consisting of the above horizontal, vertical, and center reinforcement members mortise and tenon at corners with diamond mesh securely clinched to frames. Lower horizontal frame is located 3.7" from bottom of panel for maintenance sweep space.

6. Hinge Doors: Constructed of the same materials as panels, with 1-1/4" x 1/8" flat steel bar cover on sides. Complete with all necessary mounting hardware to install and operate.

• Jambs: Two 1-1/4" x 5/8", 14-gauge roll-formed "C" type channels.
• Hinges: Three 3" x 3" butt hinges; welded to door framing and bolted to jamb.
• Padlock Arrangement: 4" x 6" cover plate with 1-1/2" lug securing into lock opening.

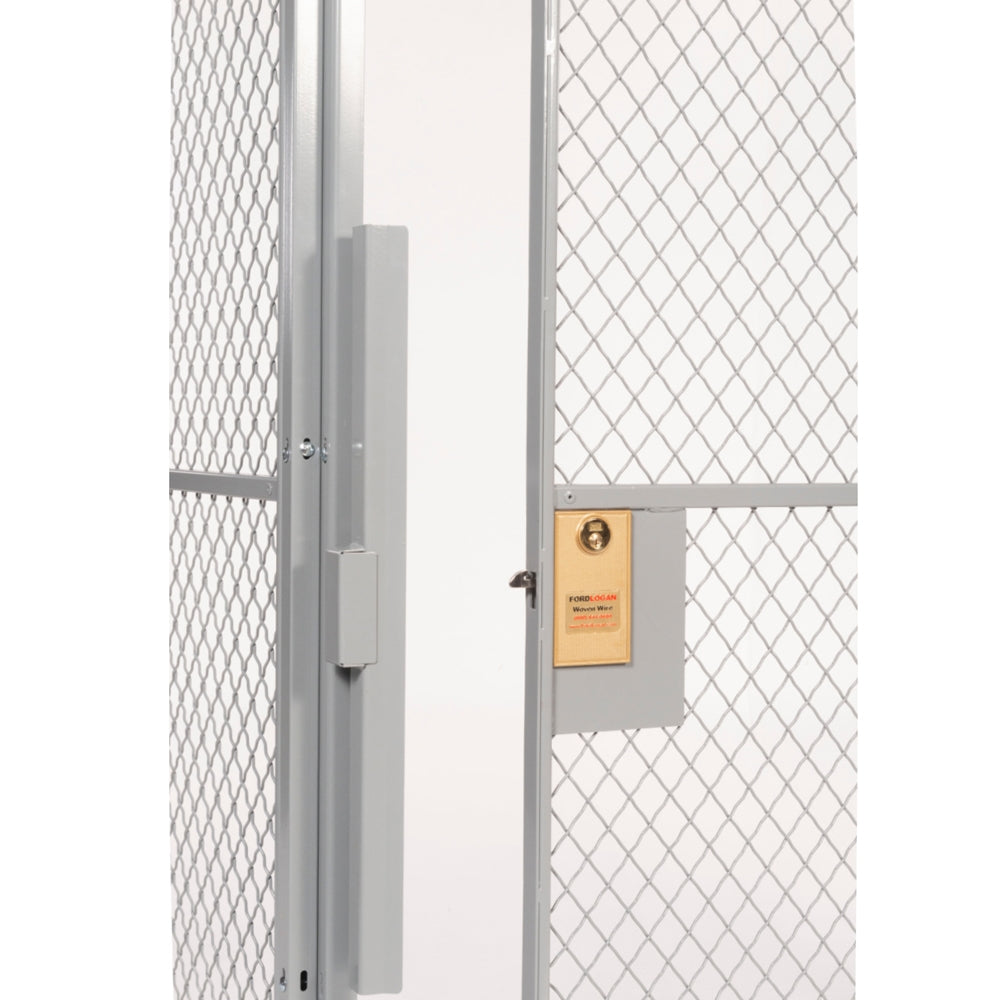

• Cylinder Lock: Mortise-type with keyed different cylinder operated by key outside and recessed knob inside.

7. Slide Doors: Constructed of the same materials as panels, with 1-1/4" x 1/8" flat steel bar cover on all sides. Complete with all necessary mounting hardware to install and operate.

• Jambs: Two 1-1/4" x 5/8", 14-gauge roll-formed "C" type channels.
• Hardware: Two 4-wheel bearing trolleys rolling in an enclosed track, 45" bottom door guide for each door, and heavy-duty 30" lock receiver.
• Padlock Arrangement: 4" x 6" cover plate with 1-1/2" lug securing into lock opening.
• Cylinder Lock: Mortise-type with keyed different cylinder operated by key outside and recessed knob inside.

8. Corner post (for 90° corner): 1-1/4" x 1-1/4" x 1/8" hot-rolled angle with 1-1/4" x 3/8" slotted holes aligning with bolt holes in vertical frames.

9. Line/Stiffener Post: 3-1/2" x 1-1/4", 10-gauge. 4" x 7" base plates with four 7/16" diameter holes to accept 3/8" diameter anchors. Recommended usage is every 15' linear feet on 7' and 8' high systems and every 10' linear feet on 9', 10' and 12' high systems.

10. Top Capping Channel: 1-1/2" x 1/2", 14-gauge roll-formed channel with holes included for through bolting to panel's horizontal frame.

11. Base Shoes: 2" high die-cast aluminum with two holes to accept 1/4" diameter anchor for securing to floor; and with setscrew for leveling adjustment.

12. Wall Clips: 3/4" wide x 1/8" thick, cold-rolled steel; formed and punched for securing to existing wall.

13. Hardware: 1/4" hex bolts and nuts for all panel to panel, panel to door, and panel/door to post connections. Field bracing, floor and wall anchors by erector.

14. Finish: Two-stage phosphate wash with a standard 2 mil polyester powder coat finish of SpaceGuard Gray, with options of Black, Green, Blue, Yellow, Red or custom color.

15. Ceiling Panels: Fabricated from same mesh, framing and reinforcement bars as panels above, but without maintenance sweep space.

16. Perimeter Angle: 1-1/2" x 1-1/2", 14-gauge galvanized angle; punched for bolting to top of wire mesh wall panels and to sides of wire mesh ceiling panels.

17. Wall Supports: 1-1/2" x 1-1/2", 14-gauge galvanized angle; punched for securing to existing walls and supporting wire ceiling panels.

18. Intermediate Beam Support: 2" x 4", 14-gauge rectangular tube for use in spans exceeding 12' in any two directions.

19. Intermediate Beam Support Post: 2" x 2", 14-gauge square tube with 4" x 7" x 3/16" base plate drilled to accept 3/8" diameter anchors; a 4" x 7" x 1/4" plate at top for support of beams.
